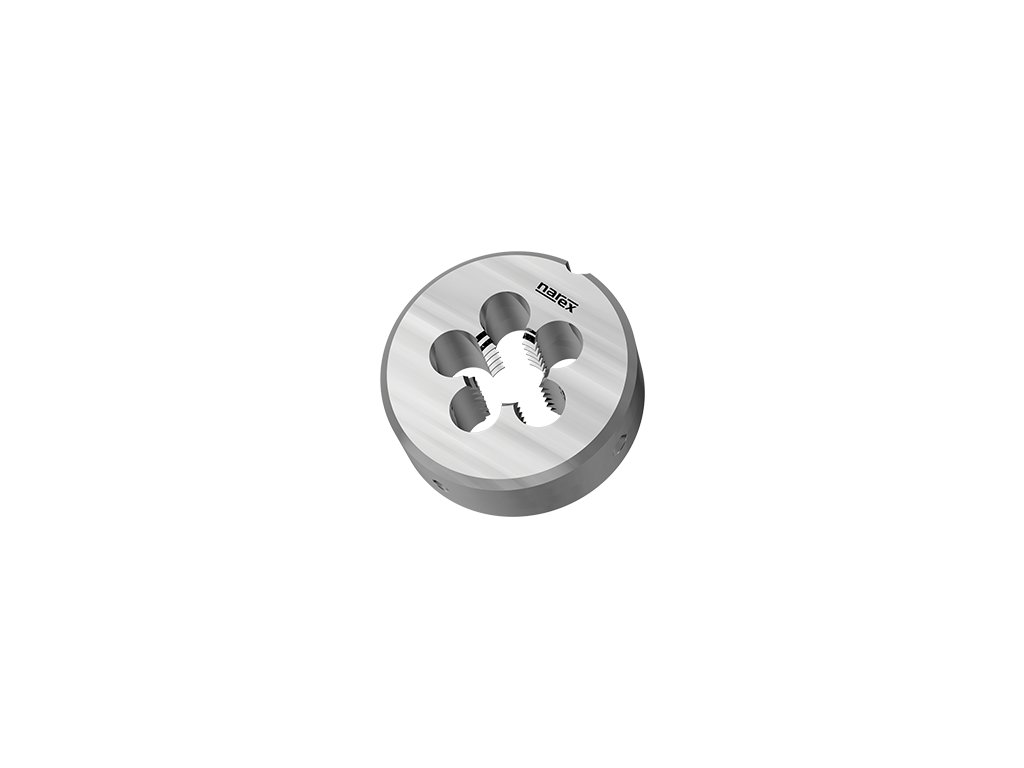

    9500 - Circular screwing die

    Code: 141132114040000
    9500 - Circular screwing die
    from €10,39 from €8,59 excl. VAT

    Choose variant

    Catalogue number: 9500

    Circular screwing dies, metric, DIN EN 22 568, suitable for structural steels, plain cast steels, free cutting steels, spheroidal graphite and malleable cast iron



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: High speed steel HSSTap material:   High speed steel HSS

    Circular screwing dies norm: DIN EN 22 568Circular screwing dies norm:   DIN EN 22 568

    Thread tolerance: ISO - 6gThread tolerance:   ISO - 6g

    Chamfer: Length 1,5 pitchChamfer:   Length 1,5 pitch


    Detailed information

    Variant: M 2x0,4 6g
    In stock (4 pcs) | 141132114020000
    €12,52
    €10,35 excl. VAT
    Variant: M 2,5x0,45 6g
    In stock (8 pcs) | 141132114025000
    €12,05
    €9,96 excl. VAT
    Variant: M 3x0,5 6g
    In stock (>10 pcs) | 141132114030000
    €10,94
    €9,04 excl. VAT
    Variant: M 3,5x0,6 6g
    Currently unavailable | 141132114035000
    €10,94
    €9,04 excl. VAT
    Variant: M 4x0,5 6g
    In stock (3 pcs) | 141132114041000
    €13,54
    €11,19 excl. VAT
    Variant: M 4x0,7 6g
    In stock (>10 pcs) | 141132114040000
    €10,39
    €8,59 excl. VAT
    Variant: M 5x0,5 6g
    Currently unavailable | 141132114051000
    €13,54
    €11,19 excl. VAT
    Variant: M 5x0,8 6g
    In stock (>10 pcs) | 141132114050000
    €10,39
    €8,59 excl. VAT
    Variant: M 6x0,75 6g
    In stock (3 pcs) | 141132114068000
    €13,54
    €11,19 excl. VAT
    Variant: M 6x1 6g
    In stock (>10 pcs) | 141132114060000
    €10,39
    €8,59 excl. VAT
    Variant: M 7x0,75 6g
    Currently unavailable | 141132114078000
    €15,37
    €12,70 excl. VAT
    Variant: M 7x1 6g
    In stock (2 pcs) | 141132114070000
    €11,81
    €9,76 excl. VAT
    Variant: M 8x0,75 6g
    Currently unavailable | 141132114088000
    €13,85
    €11,45 excl. VAT
    Variant: M 8x1 6g
    In stock (1 pcs) | 141132114087000
    €13,85
    €11,45 excl. VAT
    Variant: M 8x1,25 6g
    In stock (>10 pcs) | 141132114080000
    €10,78
    €8,91 excl. VAT
    Variant: M 9x1 6g
    Currently unavailable | 141132114097000
    €16,07
    €13,28 excl. VAT
    Variant: M 9x1,25 6g
    In stock (2 pcs) | 141132114090000
    €12,52
    €10,35 excl. VAT
    Variant: M 10x0,75 6g
    In stock (2 pcs) | 141132114108000
    €16,07
    €13,28 excl. VAT
    Variant: M 10x1 6g
    Currently unavailable | 141132114107000
    €16,07
    €13,28 excl. VAT
    Variant: M 10x1,25 6g
    In stock (>10 pcs) | 141132114106000
    €16,07
    €13,28 excl. VAT
    Variant: M 10x1,5 6g
    In stock (>10 pcs) | 141132114100000
    €12,52
    €10,35 excl. VAT
    Variant: M 11x1,5 6g
    In stock (2 pcs) | 141132114110000
    €17,64
    €14,58 excl. VAT
    Variant: M 12x1 6g
    Currently unavailable | 141132114127000
    €22,92
    €18,94 excl. VAT
    Variant: M 12x1,25 6g
    In stock (>10 pcs) | 141132114126000
    €22,92
    €18,94 excl. VAT
    Variant: M 12x1,5 6g
    Currently unavailable | 141132114125000
    €22,92
    €18,94 excl. VAT
    Variant: M 12x1,75 6g
    In stock (>10 pcs) | 141132114120000
    €18,59
    €15,36 excl. VAT
    Variant: M 14x1 6g
    Currently unavailable | 141132114147000
    €23,78
    €19,65 excl. VAT
    Variant: M 14x1,25 6g
    In stock (3 pcs) | 141132114146000
    €23,78
    €19,65 excl. VAT
    Variant: M 14x1,5 6g
    Currently unavailable | 141132114145000
    €23,78
    €19,65 excl. VAT
    Variant: M 14x2 6g
    In stock (>10 pcs) | 141132114140000
    €19,30
    €15,95 excl. VAT
    Variant: M 16x1 6g
    Currently unavailable | 141132114167000
    €33,40
    €27,60 excl. VAT
    Variant: M 16x1,5 6g
    In stock (1 pcs) | 141132114165000
    €33,40
    €27,60 excl. VAT
    Variant: M 16x2 6g
    In stock (>10 pcs) | 141132114160000
    €26,86
    €22,20 excl. VAT
    Variant: M 18x1 6g
    Currently unavailable | 141132114187000
    €33,78
    €27,92 excl. VAT
    Variant: M 18x1,5 6g
    In stock (3 pcs) | 141132114185000
    €33,78
    €27,92 excl. VAT
    Variant: M 18x2 6g
    Currently unavailable | 141132114184000
    €33,78
    €27,92 excl. VAT
    Variant: M 18x2,5 6g
    Currently unavailable | 141132114180000
    €27,25
    €22,52 excl. VAT
    Variant: M 20x1 6g
    Currently unavailable | 141132114207000
    €35,28
    €29,16 excl. VAT
    Variant: M 20x1,5 6g
    In stock (1 pcs) | 141132114205000
    €35,28
    €29,16 excl. VAT
    Variant: M 20x2,5 6g
    In stock (1 pcs) | 141132114200000
    €28,42
    €23,49 excl. VAT
    Variant: M 22x1 6g
    Currently unavailable | 141132114227000
    €48,90
    €40,41 excl. VAT
    Variant: M 22x1,5 6g
    Currently unavailable | 141132114225000
    €48,90
    €40,41 excl. VAT
    Variant: M 22x2 6g
    Currently unavailable | 141132114224000
    €48,90
    €40,41 excl. VAT
    Variant: M 22x2,5 6g
    Currently unavailable | 141132114220000
    €39,62
    €32,74 excl. VAT
    Variant: M 24x1 6g
    In stock (1 pcs) | 141132114247000
    €54,98
    €45,44 excl. VAT
    Variant: M 24x1,5 6g
    Currently unavailable | 141132114245000
    €54,98
    €45,44 excl. VAT
    Variant: M 24x2 6g
    Currently unavailable | 141132114244000
    €54,98
    €45,44 excl. VAT
    Variant: M 24x3 6g
    Currently unavailable | 141132114240000
    €44,41
    €36,70 excl. VAT
    Variant: M 27x3 6g
    Currently unavailable | 141132114270000
    €55,83
    €46,14 excl. VAT
    Variant: M 30x3,5 6g
    In stock (2 pcs) | 141132114300000
    €59,30
    €49,01 excl. VAT
    Variant: M 33x3,5 6g
    Currently unavailable | 141132114330000
    €61,42
    €50,76 excl. VAT
    Variant: M 36x4 6g
    Currently unavailable | 141132114360000
    €64,09
    €52,97 excl. VAT
    Variant: M 39x4 6g
    Currently unavailable | 141132114390000
    €85,99
    €71,07 excl. VAT
    Variant: M 42x4,5 6g
    Currently unavailable | 141132114420000
    €87,95
    €72,69 excl. VAT
    Variant: M 45x4,5 6g
    Currently unavailable | 141132114450000
    €146,08
    €120,73 excl. VAT
    Variant: M 48x5 6g
    Currently unavailable | 141132114480000
    €146,08
    €120,73 excl. VAT
    Variant: M 52x5 6g
    Currently unavailable | 141132114520000
    €152,05
    €125,66 excl. VAT

    Product detailed description

    Catalogue number: 9500

    Circular screwing dies, metric, DIN EN 22 568, suitable for structural steels, plain cast steels, free cutting steels, spheroidal graphite and malleable cast iron



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: High speed steel HSSTap material:   High speed steel HSS

    Circular screwing dies norm: DIN EN 22 568Circular screwing dies norm:   DIN EN 22 568

    Thread tolerance: ISO - 6gThread tolerance:   ISO - 6g

    Chamfer: Length 1,5 pitchChamfer:   Length 1,5 pitch




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm22-8
    P1.2Plain cast steels <500N/mm22-8
    P2.1Free-cutting steels <800N/mm23-6
    P2.2Structural steels <800N/mm23-6
    P2.3Plain cast steels <800N/mm23-6
    K6.1Grey cast iron3-4
    K6.2Spher. graphite and mall. cast iron3-4
    N8.1Aluminium alloysSi<10%4-8
    N8.2Aluminium alloysSi<10%4-8
    N9.1Pure copper4-8
    N10.1Short chipping copper alloys2-4
    N10.2Long chipping copper alloys2-4
    N11.1Zinc and zinc alloys5-10



    Dimensions:

    9500: kreslenka
    d1PtolDE
    M 20,46g165
    M 2,50,456g165
    M 30,56g205
    M 3,50,66g205
    M 40,76g205
    M 40,56g205
    M 50,56g205
    M 50,86g207
    M 616g207
    M 60,756g207
    M 70,756g259
    M 716g259
    M 81,256g259
    M 816g259
    M 80,756g259
    M 91,256g259
    M 916g259
    M 1016g3011
    M 100,756g3011
    M 101,56g3011
    M 101,256g3011
    M 111,56g3011
    M 121,56g3810
    M 121,256g3810
    M 1216g3810
    M 121,756g3814
    M 141,56g3810
    M 141,256g3810
    M 1416g3810
    M 1426g3814
    M 161,56g4514
    M 1616g4514
    M 1626g4518
    M 181,56g4514
    M 1816g4514
    M 182,56g4518
    M 1826g4514
    M 2016g4514
    M 202,56g4518
    M 201,56g4514
    M 2216g5516
    M 222,56g5522
    M 2226g5516
    M 221,56g5516
    M 2416g5516
    M 2436g5522
    M 2426g5516
    M 241,56g5516
    M 2736g6525
    M 303,56g6525
    M 333,56g6525
    M 3646g6525
    M 3946g7530
    M 424,56g7530
    M 454,56g9036
    M 4856g9036
    M 5256g9036

    Additional parameters

    Category: Circular screwing dies
    Coating: -
    Hole type: -
    Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Long chipping copper alloys, Zinc and zinc alloys, Pure copper
    Product line: NAREX Zdanice Product Line
    Standard: DIN EN 22 568
    Thread type: Metric ISO Thread, Metric ISO Fine Thread
    Tolerance: 6G
