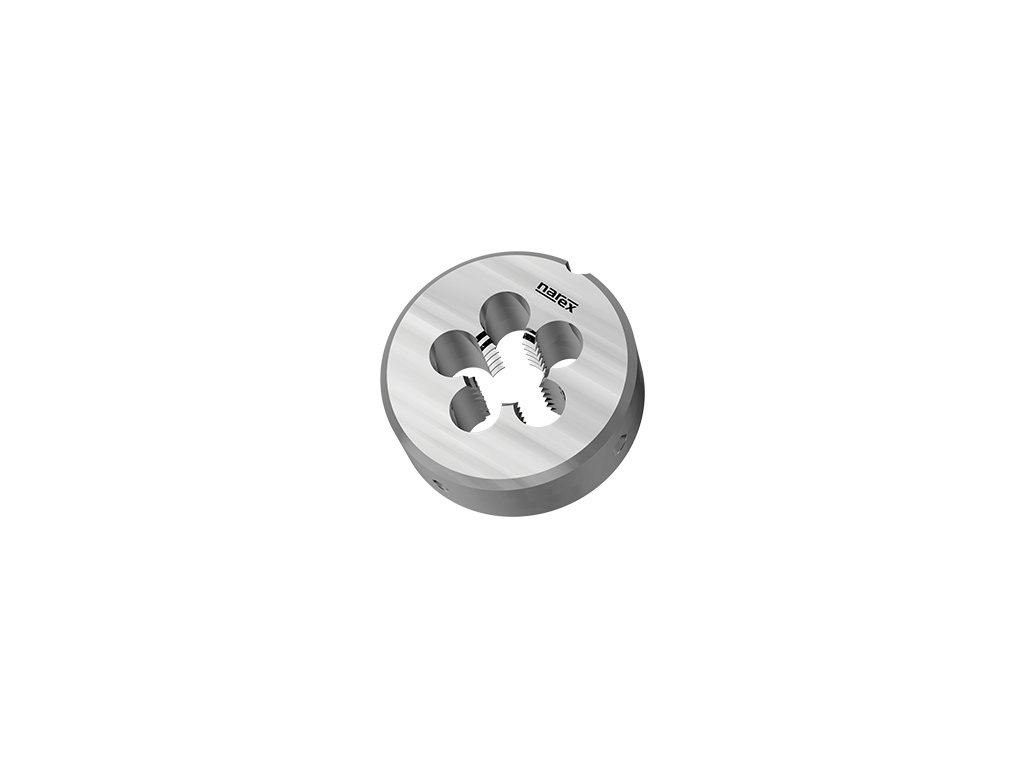

9550 - Circular screwing die with spiral point
Code: 141132150040000
Variant: M 2x0,4 6g
In stock
(2 pcs)
| 141132150020000
€16,07
€13,28
excl. VAT
Variant: M 2,5x0,45 6g
In stock
(3 pcs)
| 141132150025000
€16,07
€13,28
excl. VAT
Variant: M 3x0,5 6g
In stock
(4 pcs)
| 141132150030000
€14,17
€11,71
excl. VAT
Variant: M 4x0,7 6g
In stock
(5 pcs)
| 141132150040000
€13,47
€11,13
excl. VAT
Variant: M 5x0,8 6g
In stock
(4 pcs)
| 141132150050000
€13,47
€11,13
excl. VAT
Variant: M 6x0,75 6g
Currently unavailable
| 141132150068000
€17,33
€14,32
excl. VAT
Variant: M 6x1 6g
In stock
(5 pcs)
| 141132150060000
€13,47
€11,13
excl. VAT
Variant: M 7x1 6g
In stock
(4 pcs)
| 141132150070000
€15,11
€12,49
excl. VAT
Variant: M 8x0,75 6g
In stock
(1 pcs)
| 141132150088000
€17,97
€14,85
excl. VAT
Variant: M 8x1 6g
In stock
(3 pcs)
| 141132150087000
€17,97
€14,85
excl. VAT
Variant: M 8x1,25 6g
In stock
(4 pcs)
| 141132150080000
€13,85
€11,45
excl. VAT
Variant: M 9x1,25 6g
Currently unavailable
| 141132150090000
€16,07
€13,28
excl. VAT
Variant: M 10x1 6g
In stock
(1 pcs)
| 141132150107000
€20,70
€17,11
excl. VAT
Variant: M 10x1,25 6g
In stock
(1 pcs)
| 141132150106000
€20,70
€17,11
excl. VAT
Variant: M 10x1,5 6g
In stock
(3 pcs)
| 141132150100000
€16,07
€13,28
excl. VAT
Variant: M 11x1,5 6g
In stock
(5 pcs)
| 141132150110000
€22,92
€18,94
excl. VAT
Variant: M 12x1 6g
In stock
(1 pcs)
| 141132150127000
€29,68
€24,53
excl. VAT
Variant: M 12x1,25 6g
Currently unavailable
| 141132150126000
€29,68
€24,53
excl. VAT
Variant: M 12x1,5 6g
Currently unavailable
| 141132150125000
€29,68
€24,53
excl. VAT
Variant: M 12x1,75 6g
In stock
(1 pcs)
| 141132150120000
€23,93
€19,78
excl. VAT
Variant: M 14x1 6g
In stock
(1 pcs)
| 141132150147000
€30,72
€25,39
excl. VAT
Variant: M 14x1,25 6g
In stock
(1 pcs)
| 141132150146000
€30,72
€25,39
excl. VAT
Variant: M 14x1,5 6g
Currently unavailable
| 141132150145000
€30,72
€25,39
excl. VAT
Variant: M 14x2 6g
In stock
(2 pcs)
| 141132150140000
€24,96
€20,63
excl. VAT
Variant: M 16x1 6g
Currently unavailable
| 141132150167000
€43,32
€35,80
excl. VAT
Variant: M 16x1,5 6g
In stock
(1 pcs)
| 141132150165000
€43,32
€35,80
excl. VAT
Variant: M 16x2 6g
In stock
(3 pcs)
| 141132150160000
€35,05
€28,97
excl. VAT
Variant: M 18x1,5 6g
Currently unavailable
| 141132150185000
€43,78
€36,18
excl. VAT
Variant: M 18x2 6g
Currently unavailable
| 141132150184000
€43,78
€36,18
excl. VAT
Variant: M 18x2,5 6g
Currently unavailable
| 141132150180000
€35,44
€29,29
excl. VAT
Variant: M 20x1 6g
Currently unavailable
| 141132150207000
€45,67
€37,74
excl. VAT
Variant: M 20x1,5 6g
Currently unavailable
| 141132150205000
€45,67
€37,74
excl. VAT
Variant: M 20x2,5 6g
Currently unavailable
| 141132150200000
€36,94
€30,53
excl. VAT
Variant: M 22x1 6g
In stock
(1 pcs)
| 141132150227000
€63,79
€52,72
excl. VAT
Variant: M 22x1,5 6g
Currently unavailable
| 141132150225000
€63,79
€52,72
excl. VAT
Variant: M 22x2 6g
Currently unavailable
| 141132150224000
€63,79
€52,72
excl. VAT
Variant: M 22x2,5 6g
In stock
(1 pcs)
| 141132150220000
€51,50
€42,56
excl. VAT
Variant: M 24x1 6g
Currently unavailable
| 141132150247000
€71,51
€59,10
excl. VAT
Variant: M 24x1,5 6g
Currently unavailable
| 141132150245000
€71,51
€59,10
excl. VAT
Variant: M 24x2 6g
Currently unavailable
| 141132150244000
€71,51
€59,10
excl. VAT
Variant: M 24x3 6g
In stock
(1 pcs)
| 141132150240000
€57,72
€47,70
excl. VAT
Variant: M 27x3 6g
In stock
(1 pcs)
| 141132150270000
€72,53
€59,94
excl. VAT
Variant: M 30x3,5 6g
In stock
(1 pcs)
| 141132150300000
€77,09
€63,71
excl. VAT
Variant: M 33x3,5 6g
Currently unavailable
| 141132150330000
€79,94
€66,07
excl. VAT
Variant: M 36x4 6g
In stock
(5 pcs)
| 141132150360000
€83,15
€68,72
excl. VAT
Product detailed description
Catalogue number: 9550
Circular screwing dies with spiral point, metric and metric fine, DIN EN 22 568, suitable for structural steels, plain cast steels, free cutting steels, spheroidal graphite and malleable cast iron
Features:
Thread M: ISO Metric coarse thread
Thread MF: ISO Metric fine thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: High speed steel HSS
Circular screwing dies norm: DIN EN 22 568
Thread tolerance: ISO - 6g
Chamfer: with spiral point
Chamfer: Length 1,5 pitch
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 4-8 |
| P1.2 | Plain cast steels <500N/mm2 | 4-8 |
| P2.1 | Free-cutting steels <800N/mm2 | 4-8 |
| P2.2 | Structural steels <800N/mm2 | 4-8 |
| P2.3 | Plain cast steels <800N/mm2 | 4-8 |
| K6.1 | Grey cast iron | 3-4 |
| K6.2 | Spher. graphite and mall. cast iron | 3-4 |
| N8.1 | Aluminium alloysSi<10% | 4-8 |
| N8.2 | Aluminium alloysSi<10% | 4-8 |
| N9.1 | Pure copper | 4-8 |
| N10.1 | Short chipping copper alloys | 2-4 |
| N10.2 | Long chipping copper alloys | 2-4 |
| N11.1 | Zinc and zinc alloys | 5-10 |

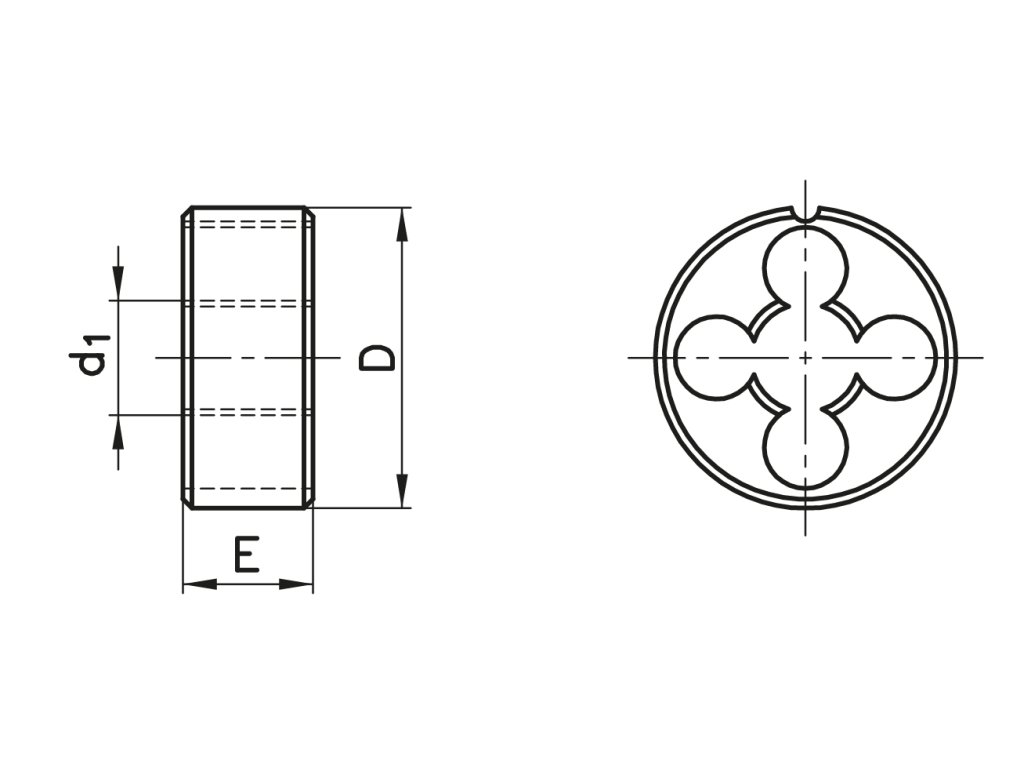

Dimensions:
| d1 | P | tol | D | E |
|---|---|---|---|---|
| M 2 | 0,4 | 6g | 16 | 5 |
| M 2,5 | 0,45 | 6g | 16 | 5 |
| M 3 | 0,5 | 6g | 20 | 5 |
| M 4 | 0,7 | 6g | 20 | 5 |
| M 5 | 0,8 | 6g | 20 | 7 |
| M 6 | 1 | 6g | 20 | 7 |
| M 6 | 0,75 | 6g | 20 | 7 |
| M 7 | 1 | 6g | 25 | 9 |
| M 8 | 1,25 | 6g | 25 | 9 |
| M 8 | 1 | 6g | 25 | 9 |
| M 8 | 0,75 | 6g | 25 | 9 |
| M 9 | 1,25 | 6g | 25 | 9 |
| M 10 | 1,5 | 6g | 30 | 11 |
| M 10 | 1,25 | 6g | 30 | 11 |
| M 10 | 1 | 6g | 30 | 11 |
| M 11 | 1,5 | 6g | 30 | 11 |
| M 12 | 1 | 6g | 38 | 10 |
| M 12 | 1,75 | 6g | 38 | 14 |
| M 12 | 1,5 | 6g | 38 | 10 |
| M 12 | 1,25 | 6g | 38 | 10 |
| M 14 | 1 | 6g | 38 | 10 |
| M 14 | 2 | 6g | 38 | 14 |
| M 14 | 1,5 | 6g | 38 | 10 |
| M 14 | 1,25 | 6g | 38 | 10 |
| M 16 | 2 | 6g | 45 | 18 |
| M 16 | 1,5 | 6g | 45 | 14 |
| M 16 | 1 | 6g | 45 | 14 |
| M 18 | 2,5 | 6g | 45 | 18 |
| M 18 | 2 | 6g | 45 | 14 |
| M 18 | 1,5 | 6g | 45 | 14 |
| M 20 | 1,5 | 6g | 45 | 14 |
| M 20 | 1 | 6g | 45 | 14 |
| M 20 | 2,5 | 6g | 45 | 18 |
| M 22 | 1,5 | 6g | 55 | 16 |
| M 22 | 1 | 6g | 55 | 16 |
| M 22 | 2,5 | 6g | 55 | 22 |
| M 22 | 2 | 6g | 55 | 16 |
| M 24 | 1,5 | 6g | 55 | 16 |
| M 24 | 1 | 6g | 55 | 16 |
| M 24 | 3 | 6g | 55 | 22 |
| M 24 | 2 | 6g | 55 | 16 |
| M 27 | 3 | 6g | 65 | 25 |
| M 30 | 3,5 | 6g | 65 | 25 |
| M 33 | 3,5 | 6g | 65 | 25 |
| M 36 | 4 | 6g | 65 | 25 |
Additional parameters
| Category: | Circular screwing dies |
|---|---|
| Coating: | - |
| Hole type: | - |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Long chipping copper alloys, Zinc and zinc alloys, Pure copper |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN EN 22 568 |
| Thread type: | Metric ISO Thread, Metric ISO Fine Thread |
| Tolerance: | 6G |
