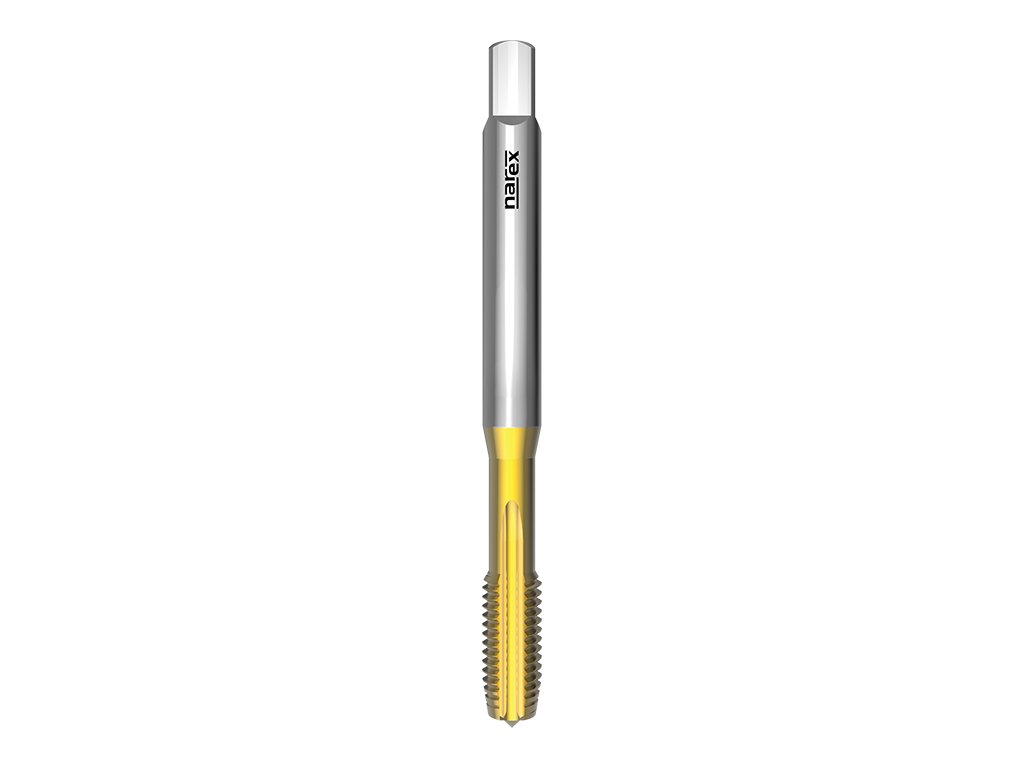

1010 - Machine tap with straight flutes
Code: 041535020030000
Variant: M 3x0,5 6H
Currently unavailable
| 041535020030000
€15,65
€12,93
excl. VAT
Variant: M 3,5x0,6 6H
In stock
(>10 pcs)
| 041535020035000
€16,09
€13,30
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 041535020040000
€15,88
€13,12
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 041535020050000
€16,31
€13,48
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 041535020060000
€16,77
€13,86
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 041535020080000
€18,63
€15,40
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 041535020100000
€22,37
€18,49
excl. VAT
Product detailed description
Catalogue number: 1010
Machine tap with straight flutes, metric, DIN 371, TiN coated, suitable for structural steels, free cutting steels, short chipping copper alloys, grey cast iron, aluminium alloys with Si>10 %.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Super high speed steel
Coating: Titanium nitride coating
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Hole type: Through hole (thread length L < 1,5xd1)
Hole type: Blind hole (thread length < 1,5 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 5-8 |
| P2.1 | Free-cutting steels <800N/mm2 | 10-14 |
| K6.1 | Grey cast iron | 8-12 |
| N8.2 | Aluminium alloysSi<10% | 14-20 |
| N10.1 | Short chipping copper alloys | 15-25 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 9 | 3,5 | 2,7 | 2,5 |
| M 3,5 | 0,6 | 6H | 56 | 11 | 4 | 3 | 2,9 |
| M 4 | 0,7 | 6H | 63 | 12 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 13 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 15 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 18 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 20 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiN |
| Hole type: | through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Structural steels <500N/mm2, Free-cutting steels <800N/mm2, Grey cast iron, Aluminium alloysSi<10%, Short chipping copper alloys |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
