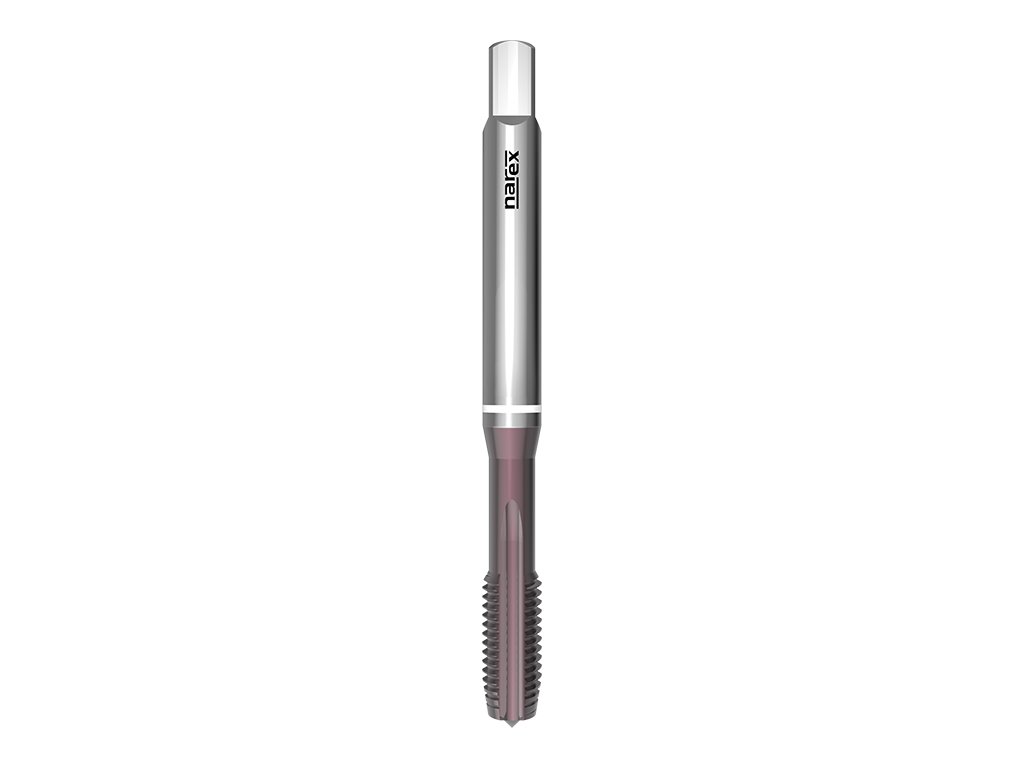

1080 - Machine tap with straight flutes
Code: 041538029030000
Variant: M 3x0,5 6HX
In stock
(>10 pcs)
| 041538029030000
€19,08
€15,77
excl. VAT
Variant: M 4x0,7 6HX
In stock
(>10 pcs)
| 041538029040000
€19,46
€16,08
excl. VAT
Variant: M 5x0,8 6HX
In stock
(>10 pcs)
| 041538029050000
€20,15
€16,65
excl. VAT
Variant: M 6x1 6HX
In stock
(>10 pcs)
| 041538029060000
€20,81
€17,20
excl. VAT
Variant: M 8x1,25 6HX
In stock
(>10 pcs)
| 041538029080000
€22,99
€19
excl. VAT
Variant: M 10x1,5 6HX
In stock
(>10 pcs)
| 041538029100000
€27,77
€22,95
excl. VAT
Product detailed description
Catalogue number: 1080
Machine tap with straight flutes, metric, DIN 371, TiCN coated, suitable for grey cast iron, aluminium alloys with Si>10 %.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type GG: Tap for cast iron
Tap material: Super high speed steel
Coating: Titanium carbonitridenitride coating
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6HX
Chamfer C: Length 2-3 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| K6.1 | Grey cast iron | 15-20 |
| N8.2 | Aluminium alloysSi<10% | 12-20 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6HX | 56 | 9 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6HX | 63 | 12 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6HX | 70 | 13 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6HX | 80 | 15 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6HX | 90 | 18 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6HX | 100 | 20 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiCN |
| Hole type: | through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Grey cast iron, Aluminium alloysSi<10% |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6HX |
