    Home / Taps / Machine taps / 1500 - Machine tap with straight flutes and spiral point

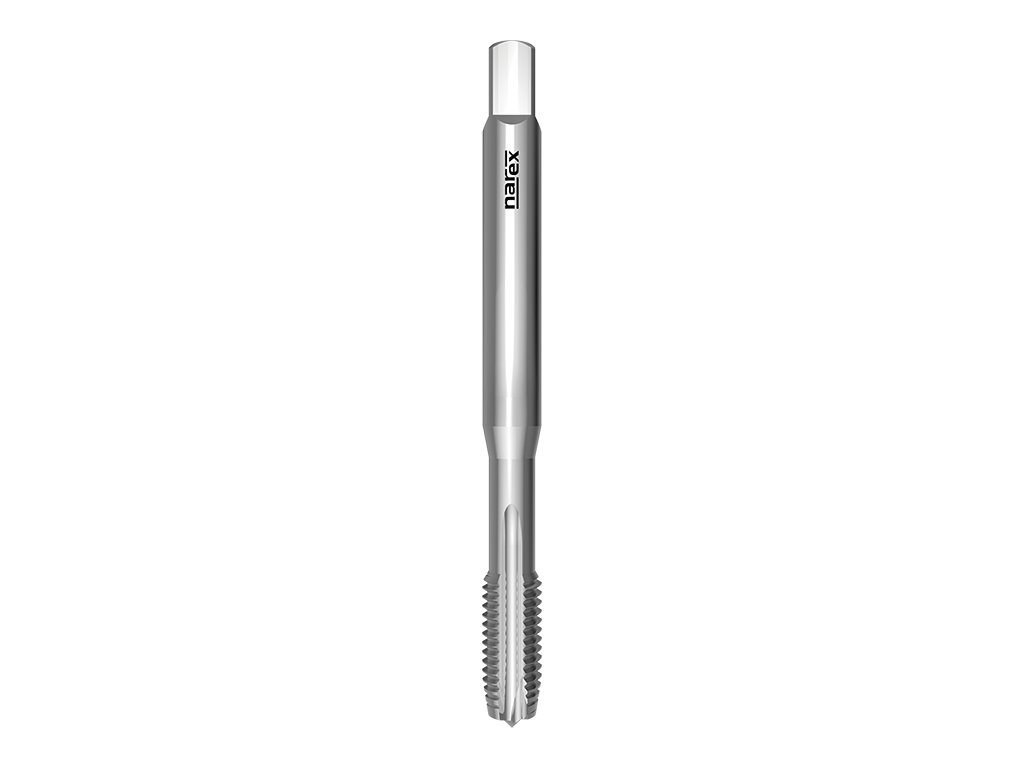

    1500 - Machine tap with straight flutes and spiral point

    Code: 041531052030000
    1500 - Machine tap with straight flutes and spiral point
    from €10,49 from €8,67 excl. VAT

    Choose variant

    Catalogue number: 1500

    Machine tap with straight flutes and spiral point, metric, DIN 371, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Thread tolerance: ISO 3 - 6GThread tolerance:   ISO 3 - 6G

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 2x0,4 6H
    In stock (>10 pcs) | 041531052020000
    €13,18
    €10,89 excl. VAT
    Variant: M 2,5x0,45 6H
    In stock (>10 pcs) | 041531052025000
    €12,66
    €10,46 excl. VAT
    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 041531052030000
    €10,49
    €8,67 excl. VAT
    Variant: M 3,5x0,6 6H
    In stock (>10 pcs) | 041531052035000
    €11,37
    €9,40 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 041531052040000
    €10,78
    €8,91 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 041531052050000
    €11,37
    €9,40 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 041531052060000
    €11,37
    €9,40 excl. VAT
    Variant: M 7x1 6H
    In stock (>10 pcs) | 041531052070000
    €14,13
    €11,68 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 041531052080000
    €13,09
    €10,82 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 041531052100000
    €15,79
    €13,05 excl. VAT
    Variant: M 3x0,5 6G
    In stock (>10 pcs) | 041531054030000
    €10,49
    €8,67 excl. VAT
    Variant: M 3,5x0,6 6G
    In stock (>10 pcs) | 041531054035000
    €11,37
    €9,40 excl. VAT
    Variant: M 4x0,7 6G
    In stock (>10 pcs) | 041531054040000
    €10,78
    €8,91 excl. VAT
    Variant: M 5x0,8 6G
    In stock (>10 pcs) | 041531054050000
    €11,37
    €9,40 excl. VAT
    Variant: M 6x1 6G
    In stock (>10 pcs) | 041531054060000
    €11,37
    €9,40 excl. VAT
    Variant: M 8x1,25 6G
    In stock (>10 pcs) | 041531054080000
    €13,09
    €10,82 excl. VAT
    Variant: M 10x1,5 6G
    In stock (>10 pcs) | 041531054100000
    €15,79
    €13,05 excl. VAT

    Product detailed description

    Catalogue number: 1500

    Machine tap with straight flutes and spiral point, metric, DIN 371, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Thread tolerance: ISO 3 - 6GThread tolerance:   ISO 3 - 6G

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm25-8
    P1.2Plain cast steels <500N/mm26-10
    P2.1Free-cutting steels <800N/mm210-14
    P2.2Structural steels <800N/mm210-14
    P2.3Plain cast steels <800N/mm210-14
    K6.2Spher. graphite and mall. cast iron4-7
    N8.1Aluminium alloysSi<10%14-20
    N8.2Aluminium alloysSi<10%12-15
    N10.1Short chipping copper alloys12-20



    Dimensions:

    1500: kreslenka
    d1Ptoll1l2d2ahole
    M 20,46H4582,82,11,6
    M 2,50,456H5092,82,12,05
    M 30,56H5693,52,72,5
    M 30,56G5693,52,72,5
    M 3,50,66H5611432,9
    M 3,50,66G5611432,9
    M 40,76G63124,54,93,3
    M 40,76H63124,53,43,3
    M 50,86H701364,94,2
    M 50,86G701364,94,2
    M 616H801564,95
    M 616G801564,95
    M 716H801575,56
    M 81,256H901886,26,8
    M 81,256G901886,26,8
    M 101,56H100201088,5
    M 101,56G100201088,5

    Additional parameters

    Category: Machine taps
    Coating: -
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
    Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
    Product line: NAREX Zdanice Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H, 6G
