1500XXL - Machine tap with straight flutes and spiral point, L=120 mm
Code: 042231052040000
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 042231052040000
€27,70
€22,89
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 042231052050000
€29,11
€24,06
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 042231052060000
€29,11
€24,06
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 042231052080000
€33,69
€27,84
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 042231052100000
€40,50
€33,47
excl. VAT
Variant: M 12x1,75 6H
In stock
(9 pcs)
| 042231052120000
€47,67
€39,40
excl. VAT
Product detailed description
Catalogue number: 1500XXL
Machine tap with straight flutes and spiral point, metric, extended to L=120 mm, the rest the same as DIN 371, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Super high speed steel
Tap standard: NAREX
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 5-8 |
| P1.2 | Plain cast steels <500N/mm2 | 6-10 |
| P2.1 | Free-cutting steels <800N/mm2 | 10-14 |
| P2.2 | Structural steels <800N/mm2 | 10-14 |
| P2.3 | Plain cast steels <800N/mm2 | 10-14 |
| K6.2 | Spher. graphite and mall. cast iron | 4-7 |
| N8.1 | Aluminium alloysSi<10% | 14-20 |
| N8.2 | Aluminium alloysSi<10% | 12-15 |
| N10.1 | Short chipping copper alloys | 12-20 |

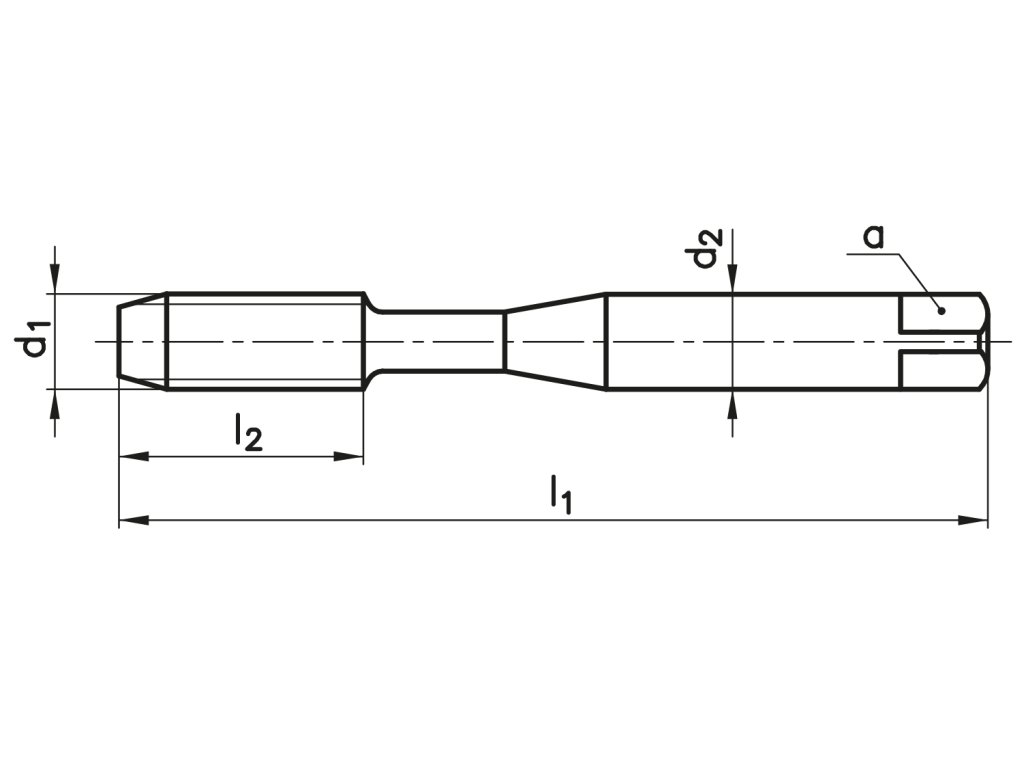

Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 4 | 0,7 | 6H | 120 | 13 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 120 | 16 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 120 | 19 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 120 | 22 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 120 | 24 | 10 | 8 | 8,5 |
| M 12 | 1,75 | 6H | 120 | 29 | 12 | 9 | 10,2 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | - |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys |
| Product line: | NAREX Zdanice Product Line |
| Standard: | NAREX Standard |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
