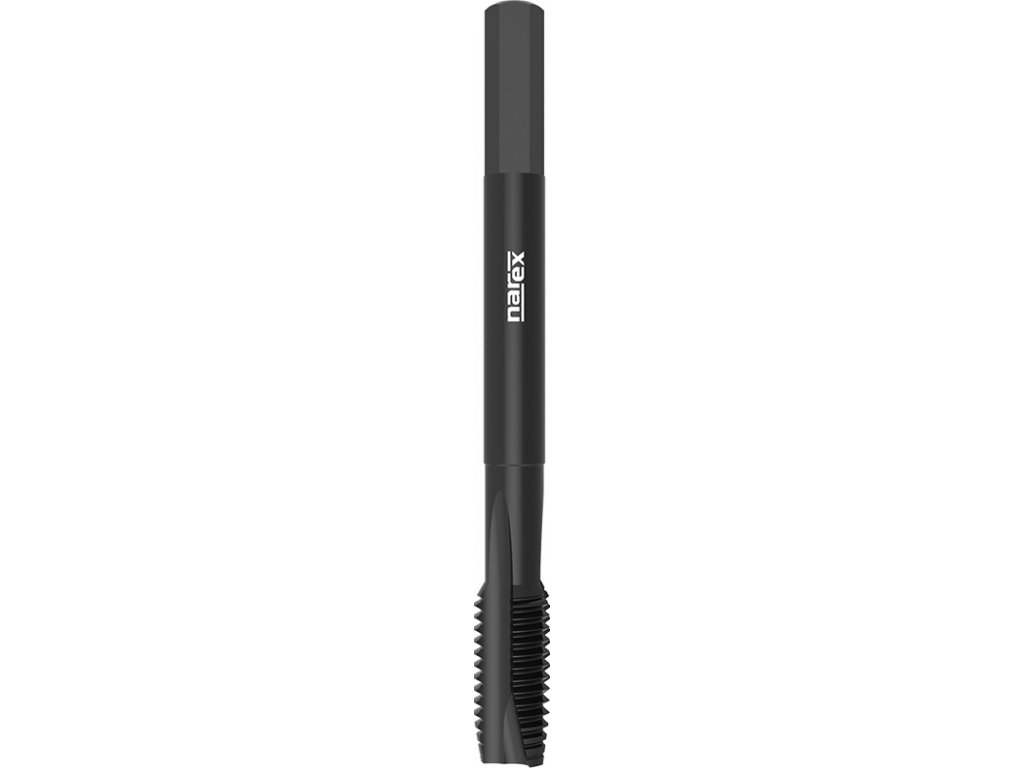

    1540-HEX - Machine tap with straight flutes and spiral point

    Code: 04453705204000H
    Novinka
    1540-HEX - Machine tap with straight flutes and spiral point
    from €11,46 from €9,47 excl. VAT

    Choose variant

    Catalogue number: 1540-HEX

    Machine taps with straight flutes and spiral point, metric, DIN 371, steam oxided, suitable for structural steels, plain cast steels, free cutting steels, zinc alloys, aluminium alloys Si<10%, possible use in aluminium alloys Si>10%.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 4x0,7 6H
    Currently unavailable | 04453705204000H
    €11,46
    €9,47 excl. VAT
    Variant: M 5x0,8 6H
    Currently unavailable | 04453705205000H
    €12,12
    €10,02 excl. VAT
    Variant: M 6x1 6H
    Currently unavailable | 04453705206000H
    €12,12
    €10,02 excl. VAT
    Variant: M 8x1,25 6H
    Currently unavailable | 04453705208000H
    €13,93
    €11,51 excl. VAT
    Variant: M 10x1,5 6H
    Currently unavailable | 04453705210000H
    €16,24
    €13,42 excl. VAT

    Product detailed description

    Catalogue number: 1540-HEX

    Machine taps with straight flutes and spiral point, metric, DIN 371, steam oxided, suitable for structural steels, plain cast steels, free cutting steels, zinc alloys, aluminium alloys Si<10%, possible use in aluminium alloys Si>10%.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.2Plain cast steels <500N/mm26-10
    P2.2Structural steels <800N/mm210-12
    P2.3Plain cast steels <800N/mm212-15
    N8.1Aluminium alloysSi<10%14-20
    N8.2Aluminium alloysSi<10%12-15
    N11.1Zinc and zinc alloys10-12



    Dimensions:

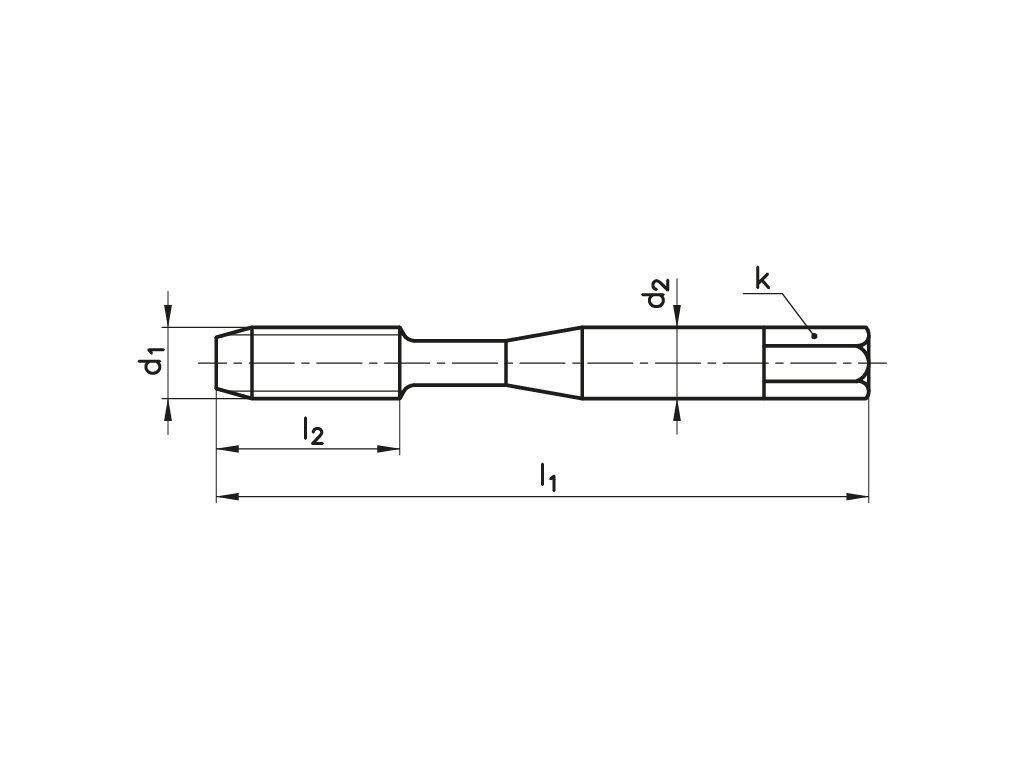

    1540-HEX: kreslenka
    d1Ptoll1l2d2ahole
    M 20,46H4582,82,11,6
    M 2,50,456H5092,82,12,05
    M 30,56H5693,52,72,5
    M 30,56G5693,52,72,5
    M 3,50,66H5611432,9
    M 3,50,66G5611432,9
    M 40,76G63124,53,43,3
    M 40,76H63124,53,43,3
    M 50,86H701364,94,2
    M 50,86G701364,94,2
    M 616H801564,95
    M 616G801564,95
    M 716H801575,56
    M 81,256H901886,26,8
    M 81,256G901886,26,8
    M 101,56H100201088,5
    M 101,56G100201088,5

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
    Machined material: Plain cast steels <500N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Zinc and zinc alloys
    Product line: NAREX Zdanice Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
