    1540XXXL-BIT - Machine tap with straight flutes and spiral point, L=150 mm

    Code: 04483705204000B
    Novinka
    1540XXXL-BIT - Machine tap with straight flutes and spiral point, L=150 mm
    from €30,69 from €25,36 excl. VAT

    Choose variant

    Catalogue number: 1540XXXL-BIT

    Machine tap with straight flutes and spiral point, metric, extended to L=150 mm, the rest the same as DIN 371, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: NAREXTap standard:   NAREX

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 4x0,7 6H
    Currently unavailable | 04483705204000B
    €30,69
    €25,36 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 04483705205000B
    €32,11
    €26,54 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 04483705206000B
    €32,11
    €26,54 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 04483705208000B
    €37,20
    €30,74 excl. VAT

    Product detailed description

    Catalogue number: 1540XXXL-BIT

    Machine tap with straight flutes and spiral point, metric, extended to L=150 mm, the rest the same as DIN 371, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: NAREXTap standard:   NAREX

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm25-8
    P1.2Plain cast steels <500N/mm26-10
    P2.1Free-cutting steels <800N/mm210-14
    P2.2Structural steels <800N/mm210-14
    P2.3Plain cast steels <800N/mm210-14
    K6.2Spher. graphite and mall. cast iron4-7
    N8.1Aluminium alloysSi<10%14-20
    N8.2Aluminium alloysSi<10%12-15
    N10.1Short chipping copper alloys12-20



    Dimensions:

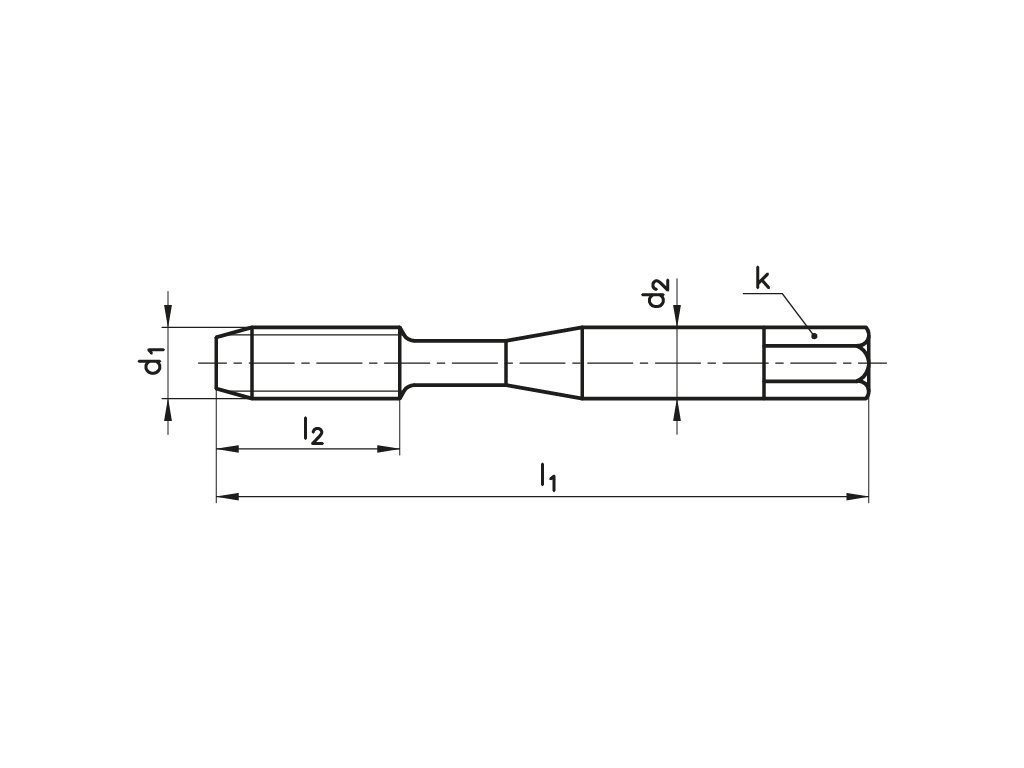

    1540XXXL-BIT: kreslenka
    d1Ptoll1l2d2ahole
    M 40,76H150134,53,43,3
    M 50,86H1501664,94,2
    M 616H1501964,95
    M 81,256H1502286,26,8
    M 101,56H150241088,5
    M 121,756H1502912910,2

    Additional parameters

    Category: Machine taps
    Coating: OX
    Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
    Product line: NAREX Zdanice Product Line
    Standard: NAREX Standard
    Thread type: Metric ISO Thread
    Tolerance: 6H
