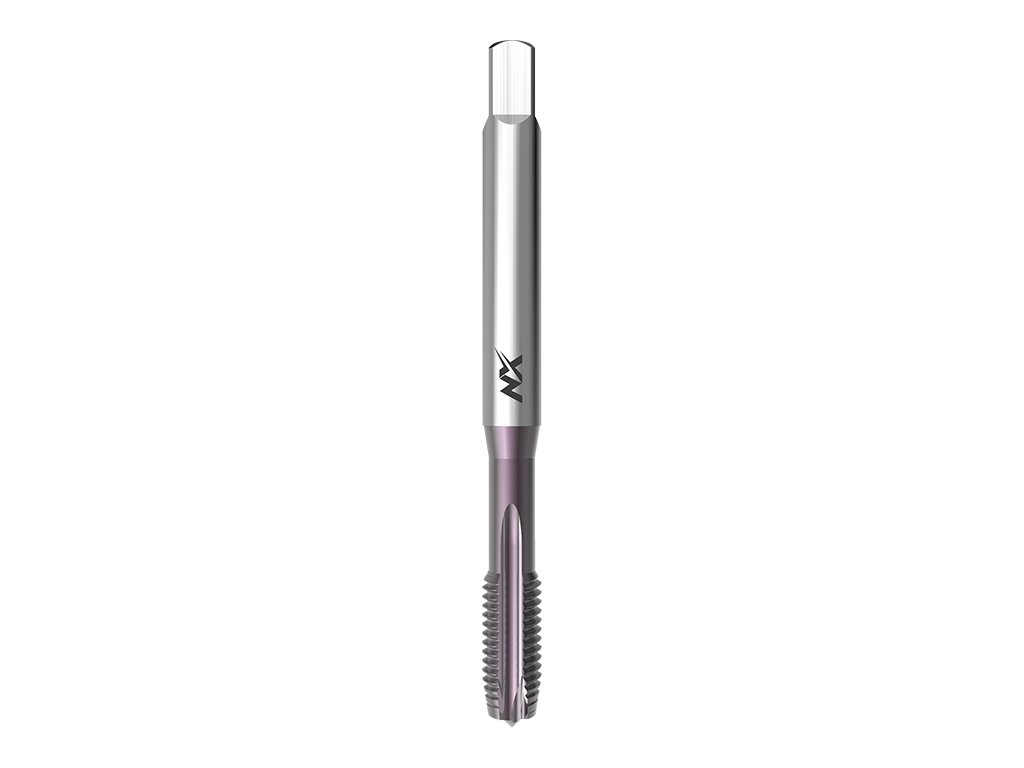

1680NX - Machine tap with straight flutes and spiral point
Code: 042038062030000
Variant: M 3x0,5 6H
In stock
(>10 pcs)
| 042038062030000
€39,26
€32,45
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 042038062040000
€39,26
€32,45
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 042038062050000
€40,55
€33,51
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 042038062060000
€41,71
€34,47
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 042038062080000
€58,21
€48,11
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 042038062100000
€75,47
€62,37
excl. VAT
Product detailed description
Catalogue number: 1680NX
High performance machine tap with straight flutes and spiral point, metric, DIN 371, TiCN coated, suitable for structural steels, cast steels, case hardened and nitriding steels, high alloyed steels, tool steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type VA: Tap for stainless steels
Tap material: Vanadium extra high speed steel HSSE V3
Coating: Titanium carbonitridenitride coating
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P2.2 | Structural steels <800N/mm2 | 15-22 |
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 15-18 |
| P3.2 | Heat-treated steels <1200N/mm2 | 15-18 |
| P3.3 | Tool steels <1200N/mm2 | 15-18 |
| M5.1 | Stainless steels 450-800N/mm2 | 15-18 |
| M5.2 | Stainless steels 600-1000N/mm2 | 15-18 |
| K6.2 | Spher. graphite and mall. cast iron | 15-18 |
| N7.1 | Unalloyed aluminium | 32-40 |
| N8.1 | Aluminium alloysSi<10% | 18-22 |
| N8.2 | Aluminium alloysSi<10% | 15-18 |
| N9.1 | Pure copper | 22-25 |
| N10.1 | Short chipping copper alloys | 10-12 |
| N10.2 | Long chipping copper alloys | 10-12 |
| N11.1 | Zinc and zinc alloys | 10-12 |

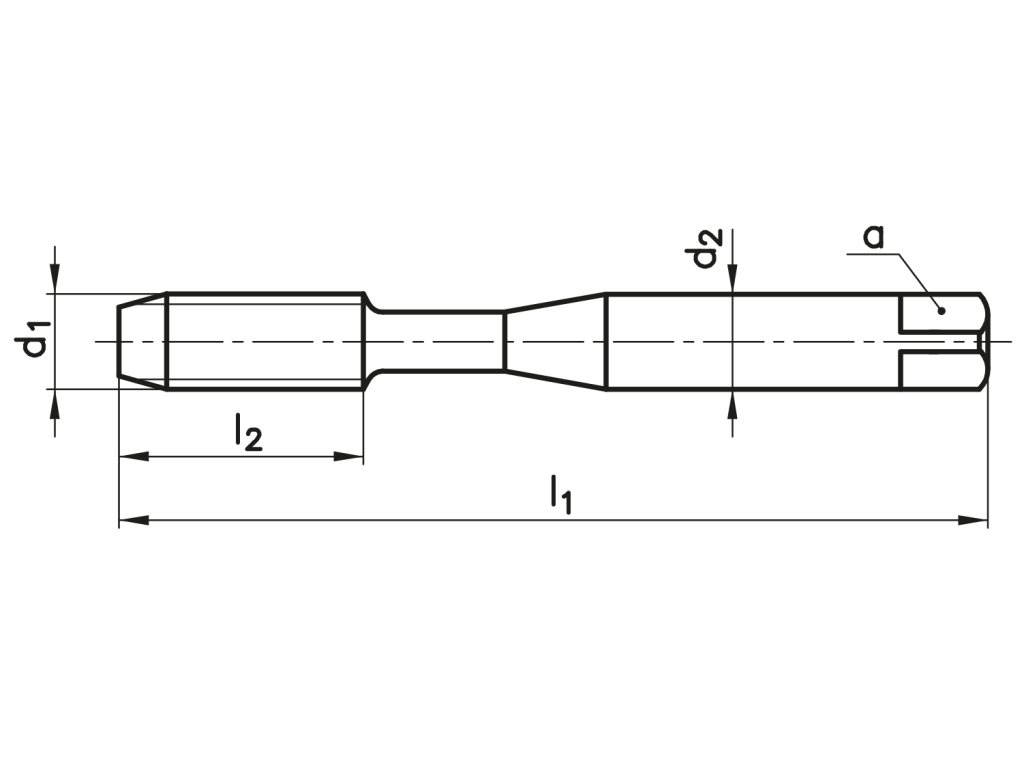

Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 11 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 13 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 16 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 19 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 22 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 24 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiCN |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Structural steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Unalloyed aluminium, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper |
| Product line: | NX Precision Taps Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
