    Home / Taps / Machine taps / 1690 - Machine tap with straight flutes and spiral point

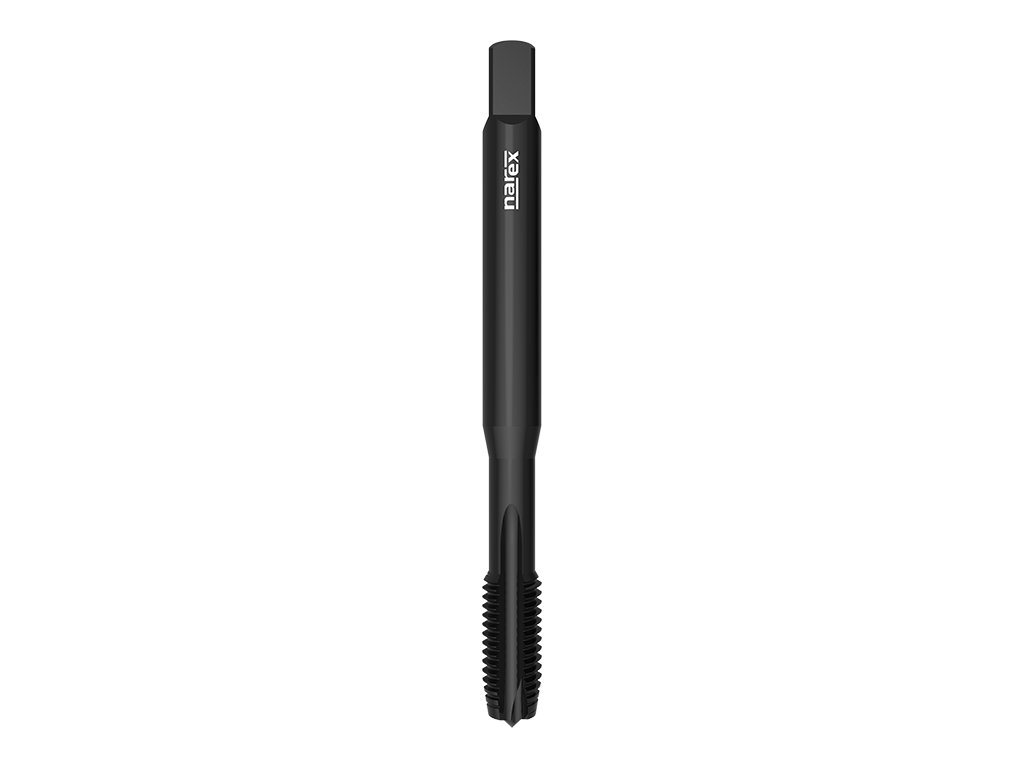

    1690 - Machine tap with straight flutes and spiral point

    Code: 041537062030000
    1690 - Machine tap with straight flutes and spiral point
    from €16,40 from €13,55 excl. VAT

    Choose variant

    Catalogue number: 1690

    Machine tap with straight flutes and spiral point, metric, DIN 371, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 041537062030000
    €16,40
    €13,55 excl. VAT
    Variant: M 4x0,7 6H
    Currently unavailable | 041537062040000
    €16,61
    €13,73 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 041537062050000
    €17,21
    €14,22 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 041537062060000
    €17,29
    €14,29 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 041537062080000
    €20,15
    €16,65 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 041537062100000
    €23,43
    €19,36 excl. VAT

    Product detailed description

    Catalogue number: 1690

    Machine tap with straight flutes and spiral point, metric, DIN 371, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm23-5
    M5.1Stainless steels 450-800N/mm24-7
    M5.2Stainless steels 600-1000N/mm23-5



    Dimensions:

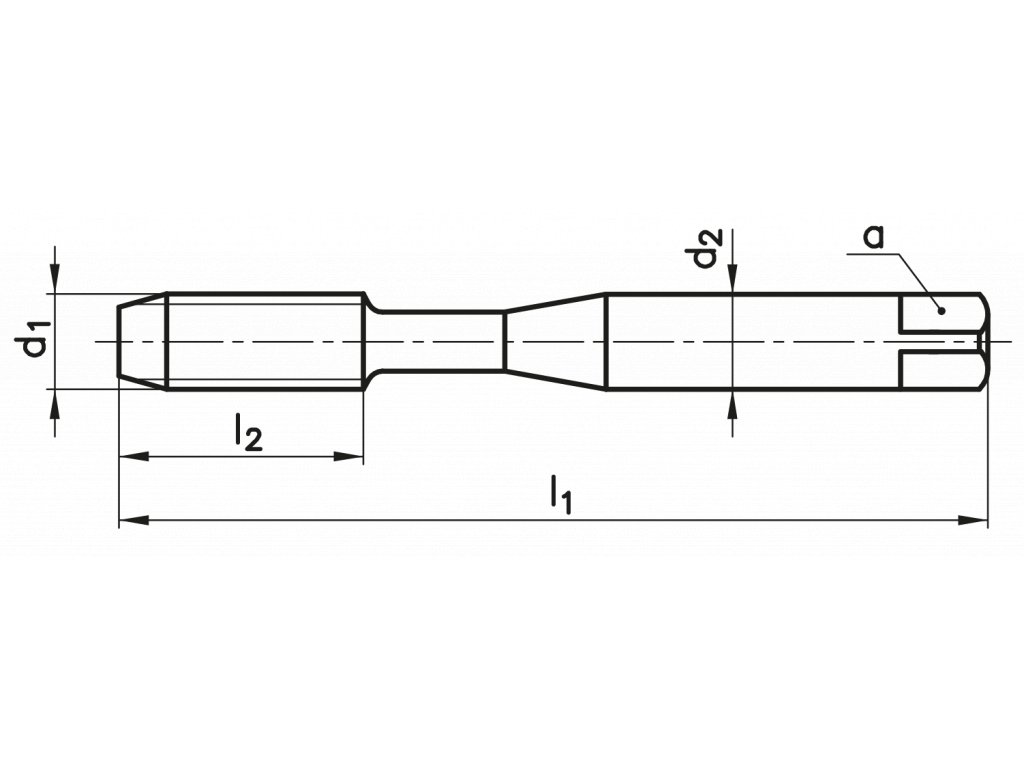

    1690: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5693,52,72,5
    M 40,76H63124,53,43,3
    M 50,86H701364,94,2
    M 616H801564,95
    M 81,256H901886,26,8
    M 101,56H100201088,5

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
    Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Case hardened and nitriding steels <1200N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
