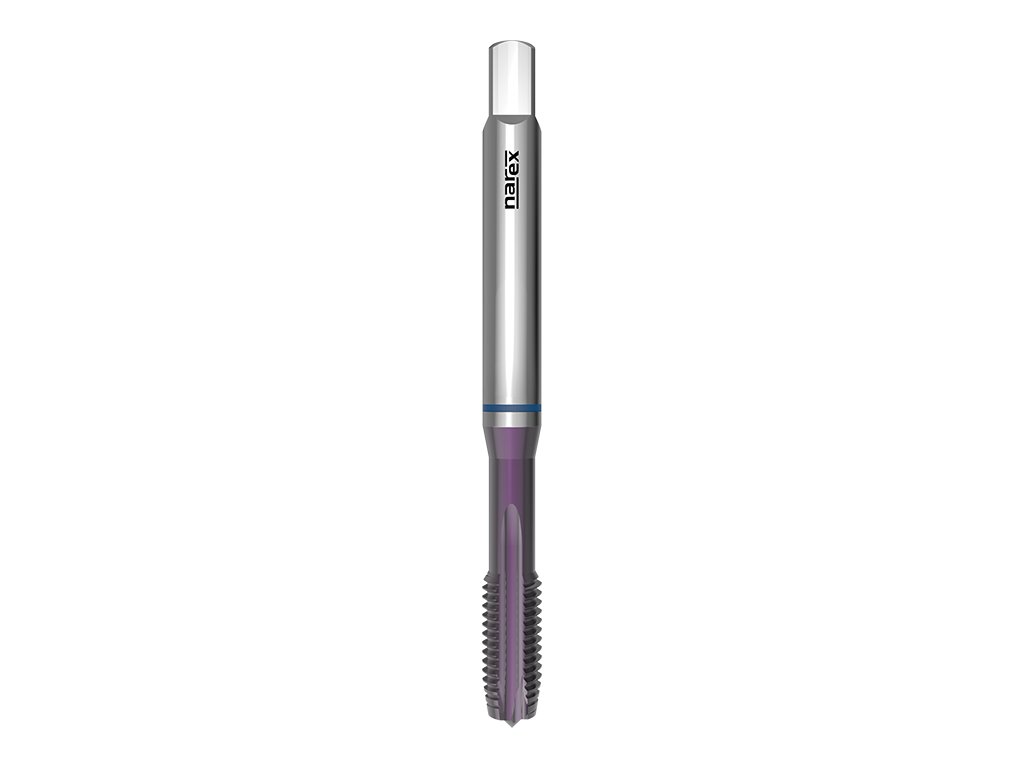

1870 - Machine tap with straight flutes and spiral point
Code: 041536084030000
Variant: M 3x0,5 6H
Currently unavailable
| 041536084030000
€29,86
€24,68
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 041536084040000
€30,54
€25,24
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 041536084050000
€32,17
€26,59
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 041536084060000
€32,17
€26,59
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 041536084080000
€37,28
€30,81
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 041536084100000
€44,67
€36,92
excl. VAT
Product detailed description
Catalogue number: 1870
Machine tap with straight flutes and spiral point, metric, DIN 371, Balinit Hardlube coated, suitable for case hardened and nitriding steels, stainless steels with stength up to 1000 N/mm2, unalloyed copper and long chipping copper alloys, possible use in tool steels.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type VA: Tap for stainless steels
Tap material: Powder high speed steel
Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 6-8 |
| P3.3 | Tool steels <1200N/mm2 | 4-6 |
| M5.1 | Stainless steels 450-800N/mm2 | 8-14 |
| M5.2 | Stainless steels 600-1000N/mm2 | 6-10 |
| N9.1 | Pure copper | 10-15 |
| N10.2 | Long chipping copper alloys | 12-20 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 9 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 12 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 13 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 15 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 18 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 20 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | HL |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
