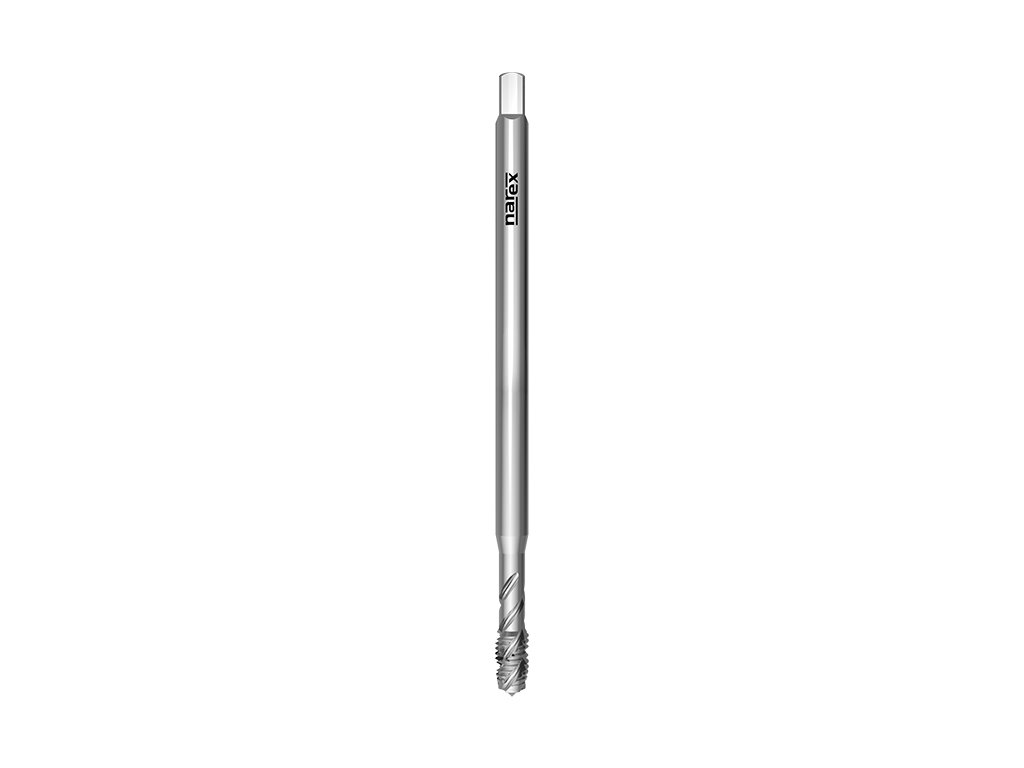

2050XXL - Machine tap with right-hand spiral flutes 40°, L=120 mm
Code: 042231118040000
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 042231118040000
€29,49
€24,37
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 042231118050000
€30,54
€25,24
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 042231118060000
€31,81
€26,29
excl. VAT
Variant: M 8x1,25 6H
In stock
(>10 pcs)
| 042231118080000
€36,59
€30,24
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 042231118100000
€43,18
€35,69
excl. VAT
Variant: M 12x1,75 6H
In stock
(>10 pcs)
| 042231118120000
€53,22
€43,98
excl. VAT
Product detailed description
Catalogue number: 2050XXL
Machine tap with spiral flutes, metric, extended to L= 120 mm, the rest of dimensions like DIN 371, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, aluminium alloys Si<10 % and long chipping copper alloys.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Super high speed steel
Tap standard: NAREX
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Spiral flute angle: 40°
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P2.2 | Structural steels <800N/mm2 | 10-14 |
| P2.3 | Plain cast steels <800N/mm2 | 10-14 |
| K6.2 | Spher. graphite and mall. cast iron | 4-7 |
| N8.1 | Aluminium alloysSi<10% | 14-20 |
| N10.2 | Long chipping copper alloys | 6-10 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 4 | 0,7 | 6H | 120 | 13 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 120 | 16 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 120 | 19 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 120 | 22 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 120 | 24 | 10 | 8 | 8,5 |
| M 12 | 1,75 | 6H | 120 | 29 | 12 | 9 | 10,2 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | - |
| Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Long chipping copper alloys |
| Product line: | NAREX Zdanice Product Line |
| Standard: | NAREX Standard |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
