    Home / Taps / Machine taps / 2070NX - Machine tap with right-hand spiral flutes 40°

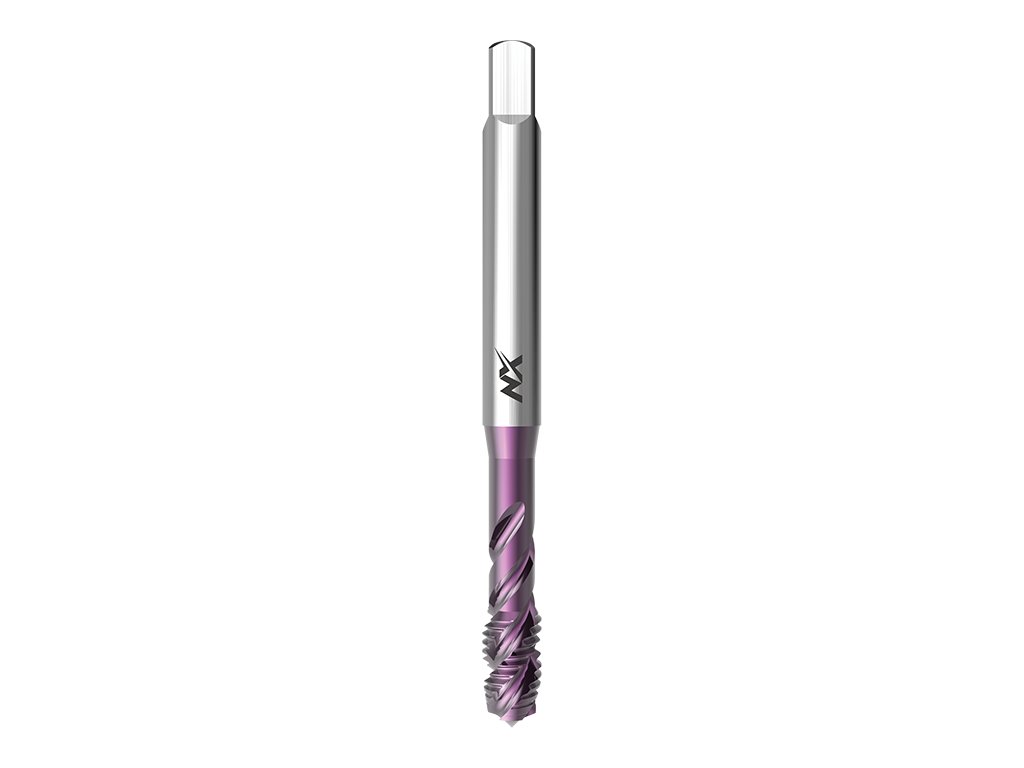

    2070NX - Machine tap with right-hand spiral flutes 40°

    Code: 042036118030000
    2070NX - Machine tap with right-hand spiral flutes 40°
    from €39,12 from €32,33 excl. VAT

    Choose variant

    Catalogue number: 2070NX

    High precision machine tap with 40° spiral, metric, DIN 371, TiAlN coated, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, long chipping copper alloys.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: TiAlNCoating:   TiAlN

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


    Detailed information

    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 042036118030000
    €39,12
    €32,33 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 042036118040000
    €39,12
    €32,33 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 042036118050000
    €40,55
    €33,51 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 042036118060000
    €40,55
    €33,51 excl. VAT
    Variant: M 8x1,25 6H
    In stock (9 pcs) | 042036118080000
    €53,40
    €44,13 excl. VAT
    Variant: M 10x1,5 6H
    In stock (4 pcs) | 042036118100000
    €63,69
    €52,64 excl. VAT

    Product detailed description

    Catalogue number: 2070NX

    High precision machine tap with 40° spiral, metric, DIN 371, TiAlN coated, suitable for structural steels, cast steels, free cutting steels, spheroidal and malleable cast iron, long chipping copper alloys.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: TiAlNCoating:   TiAlN

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm210-12
    P1.2Plain cast steels <500N/mm210-12
    P2.1Free-cutting steels <800N/mm212-15
    P2.2Structural steels <800N/mm212-15
    P2.3Plain cast steels <800N/mm212-15



    Dimensions:

    2070NX: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5653,52,72,5
    M 40,76H6374,53,43,3
    M 50,86H70864,94,2
    M 616H801064,95
    M 81,256H901386,26,8
    M 101,56H100151088,5

    Additional parameters

    Category: Machine taps
    Coating: TiAlN
    Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
    Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2
    Product line: NX Precision Taps Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
