    Home / Taps / Machine taps / 2220NX - Machine tap with right-hand spiral flutes 50°

    2220NX - Machine tap with right-hand spiral flutes 50°

    Code: 042036124030000
    2220NX - Machine tap with right-hand spiral flutes 50°
    from €51,06 from €42,20 excl. VAT

    Choose variant

    Catalogue number: 2220NX

    High performance machine tap with 50° spiral flutes, metric, DIN 371, Balinit Hardlube coated, suitable for universal use.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Thread tolerance: ISO 3 - 6GXThread tolerance:   ISO 3 - 6GX

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 50°Spiral flute angle:   50°

    Hole type: Blind hole (thread length < 2,5 d1)Hole type:   Blind hole (thread length < 2,5 d1)


    Detailed information

    Variant: M 2x0,4 6HX
    In stock (>10 pcs) | 042036124020000
    €55,22
    €45,64 excl. VAT
    Variant: M 2,5x0,45 6HX
    In stock (>10 pcs) | 042036124025000
    €54,06
    €44,68 excl. VAT
    Variant: M 3x0,5 6HX
    In stock (>10 pcs) | 042036124030000
    €51,06
    €42,20 excl. VAT
    Variant: M 4x0,7 6HX
    In stock (>10 pcs) | 042036124040000
    €52,51
    €43,40 excl. VAT
    Variant: M 5x0,8 6HX
    In stock (>10 pcs) | 042036124050000
    €54,06
    €44,68 excl. VAT
    Variant: M 6x1 6HX
    In stock (>10 pcs) | 042036124060000
    €55,09
    €45,53 excl. VAT
    Variant: M 8x1,25 6HX
    In stock (>10 pcs) | 042036124080000
    €67,43
    €55,73 excl. VAT
    Variant: M 10x1,5 6HX
    In stock (>10 pcs) | 042036124100000
    €81,77
    €67,58 excl. VAT
    Variant: M 3x0,5 6GX
    In stock (4 pcs) | 042036126030000
    €51,06
    €42,20 excl. VAT
    Variant: M 4x0,7 6GX
    In stock (4 pcs) | 042036126040000
    €52,51
    €43,40 excl. VAT
    Variant: M 5x0,8 6GX
    In stock (2 pcs) | 042036126050000
    €54,06
    €44,68 excl. VAT
    Variant: M 6x1 6GX
    In stock (2 pcs) | 042036126060000
    €74,71
    €61,74 excl. VAT
    Variant: M 8x1,25 6GX
    In stock (4 pcs) | 042036126080000
    €90,05
    €74,42 excl. VAT
    Variant: M 10x1,5 6GX
    In stock (6 pcs) | 042036126100000
    €109
    €90,08 excl. VAT

    Product detailed description

    Catalogue number: 2220NX

    High performance machine tap with 50° spiral flutes, metric, DIN 371, Balinit Hardlube coated, suitable for universal use.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Powder high speed steelTap material:   Powder high speed steel

    Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HXThread tolerance:   ISO 2 - 6HX

    Thread tolerance: ISO 3 - 6GXThread tolerance:   ISO 3 - 6GX

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 50°Spiral flute angle:   50°

    Hole type: Blind hole (thread length < 2,5 d1)Hole type:   Blind hole (thread length < 2,5 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.1Structural steels <500N/mm218-22
    P1.2Plain cast steels <500N/mm218-22
    P2.1Free-cutting steels <800N/mm210-12
    P2.2Structural steels <800N/mm210-12
    P2.3Plain cast steels <800N/mm210-12
    P3.1Case hardened and nitriding steels <1200N/mm210-12
    P3.2Heat-treated steels <1200N/mm210-12
    P3.3Tool steels <1200N/mm210-12
    P4.1High-alloyed steels <1400N/mm210-12
    P4.2Heat-treated steels <1400N/mm210-12
    M5.1Stainless steels 450-800N/mm210-12
    M5.2Stainless steels 600-1000N/mm210-12
    K6.1Grey cast iron12-18
    K6.2Spher. graphite and mall. cast iron12-18
    N7.1Unalloyed aluminium26-32
    N8.1Aluminium alloysSi<10%12-18
    N8.2Aluminium alloysSi<10%12-18
    N9.1Pure copper18-22
    N10.1Short chipping copper alloys10-12
    N10.2Long chipping copper alloys10-12
    N11.1Zinc and zinc alloys10-12



    Dimensions:

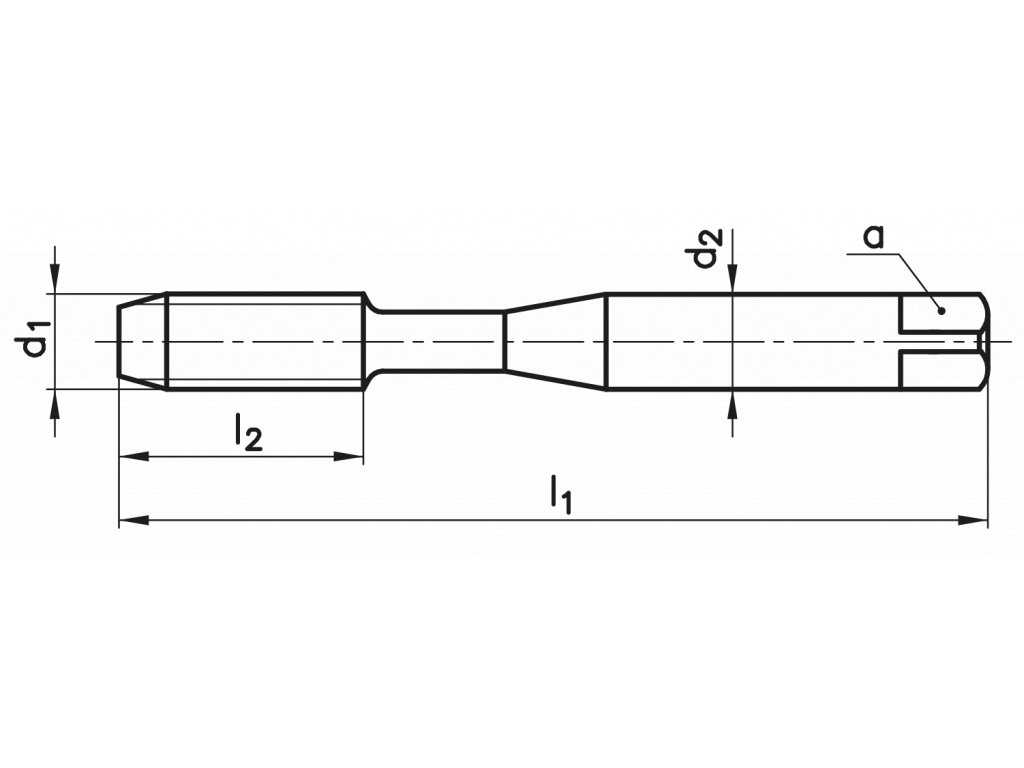

    2220NX: kreslenka
    d1Ptoll1l2d2ahole
    M 20,46HX4582,82,11,6
    M 2,50,456HX5092,82,12,05
    M 30,56GX5653,52,72,5
    M 30,56HX5653,52,72,5
    M 40,76GX6374,53,43,3
    M 40,76HX6374,53,43,3
    M 50,86GX70864,94,2
    M 50,86HX70864,94,2
    M 616HX801064,95
    M 616GX801064,95
    M 81,256GX901386,26,8
    M 81,256HX901386,26,8
    M 101,56GX100151088,5
    M 101,56HX100151088,5

    Additional parameters

    Category: Machine taps
    Coating: HL
    Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
    Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Unalloyed aluminium, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper, High-alloyed steels <1400N/mm2, Heat-treated steels <1400N/mm2
    Product line: NX Precision Taps Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6HX, 6GX
