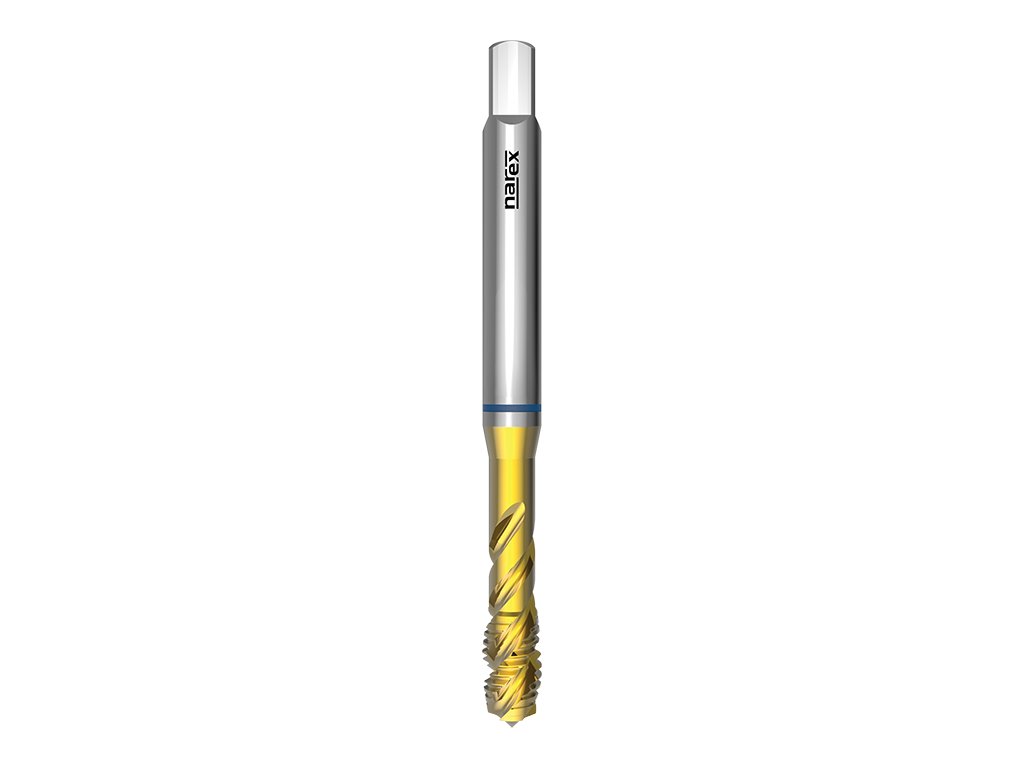

2264 - Machine tap with right-hand spiral flutes 40°

Code: 041535832003000
from €27,62 from €22,83 excl. VAT

Choose variant

Catalogue number: 2264

Machine tap with spiral flutes, unified national coarse thread UNC, DIN 371, TiN coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, tool steels, spheroidal and malleable cast iron, unaloyed copper and



Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 371Tap standard:   ~ DIN 371

Thread tolerance: 2BXThread tolerance:   2BX

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: UNC 5x40 2BX
In stock (5 pcs) | 041535832002000
€28,97
€23,94 excl. VAT
Variant: UNC 6x32 2BX
Currently unavailable | 041535832003000
€27,62
€22,83 excl. VAT
Variant: UNC 8x32 2BX
Currently unavailable | 041535832004000
€27,70
€22,89 excl. VAT
Variant: UNC 10x24 2BX
In stock (1 pcs) | 041535832005000
€29,49
€24,37 excl. VAT
Variant: UNC 12x24 2BX
In stock (10 pcs) | 041535832006000
€34,42
€28,45 excl. VAT
Variant: UNC 1/4x20 2BX
In stock (10 pcs) | 041535832007000
€32,94
€27,22 excl. VAT
Variant: UNC 5/16x18 2BX
Currently unavailable | 041535832009000
€34,71
€28,69 excl. VAT
Variant: UNC 3/8x16 2BX
In stock (>10 pcs) | 041535832011000
€39,29
€32,47 excl. VAT

Product detailed description

Catalogue number: 2264

Machine tap with spiral flutes, unified national coarse thread UNC, DIN 371, TiN coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, tool steels, spheroidal and malleable cast iron, unaloyed copper and



Features:

Thread UNC: Unified coarse threadThread UNC:   Unified coarse thread

Profile sketch: 60°Profile sketch:   60°

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Super high speed steelTap material:   Super high speed steel

Coating: Titanium nitride coatingCoating:   Titanium nitride coating

Tap standard: ~ DIN 371Tap standard:   ~ DIN 371

Thread tolerance: 2BXThread tolerance:   2BX

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P3.1Case hardened and nitriding steels <1200N/mm26-8
P3.3Tool steels <1200N/mm26-8
M5.1Stainless steels 450-800N/mm28-14
M5.2Stainless steels 600-1000N/mm26-10
K6.2Spher. graphite and mall. cast iron7-10
N9.1Pure copper8-12
N10.2Long chipping copper alloys10-15



Dimensions:

2264: kreslenka
d1Ptoll1l2d2ahole
UNC 5402BX5653,52,72,6
UNC 6322BX567432,85
UNC 8322BX6374,53,43,5
UNC 10242BX70864,93,9
UNC 12242BX801064,94,5
UNC 1/4202BX801075,55,2
UNC 5/16182BX901386,26,6
UNC 3/8162BX9015978

Additional parameters

Category: Machine taps
Coating: TiN
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Spher. graphite and mall. cast iron, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper
Product line: NAREX Zdanice Product Line
Standard: DIN ≈371
Thread type: Metric ISO Thread
Tolerance: 2BX
