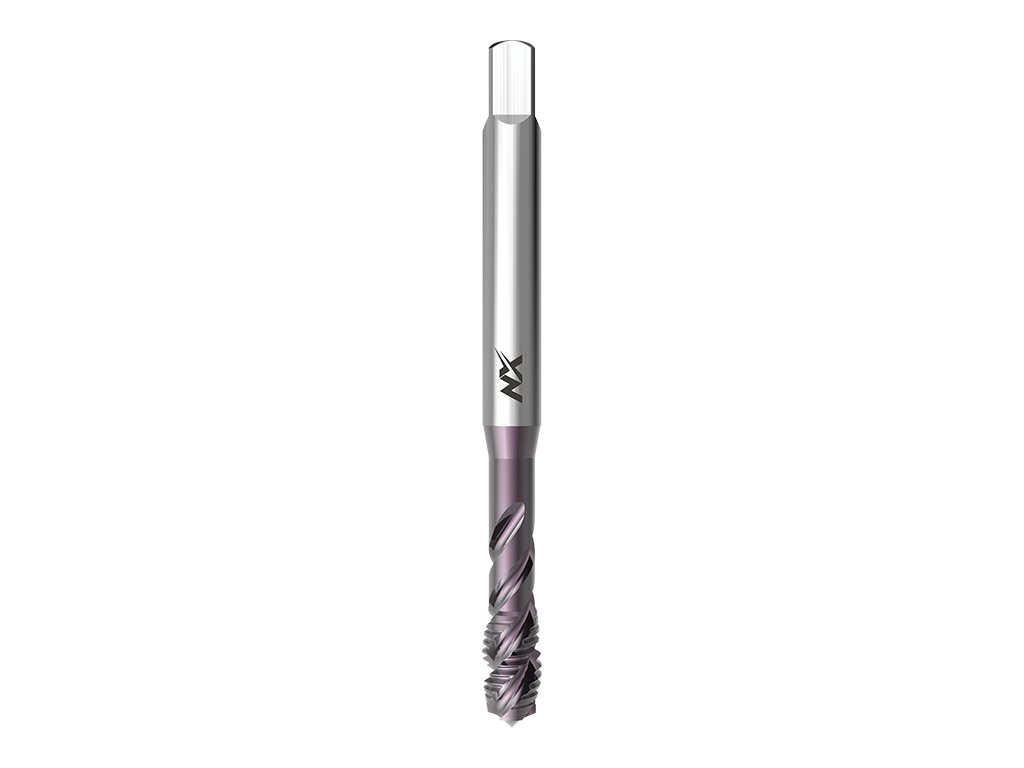

2280NX - Machine tap with right-hand spiral flutes 40°

Code: 042038132040000
from €40,08 from €33,12 excl. VAT

Choose variant

Catalogue number: 2280NX

High performance machine tap with spiral flutes, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2,5 d1)Hole type:   Blind hole (thread length < 2,5 d1)


Detailed information

Variant: M 3x0,5 6H
In stock (>10 pcs) | 042038132030000
€40,96
€33,85 excl. VAT
Variant: M 4x0,7 6H
In stock (>10 pcs) | 042038132040000
€40,08
€33,12 excl. VAT
Variant: M 5x0,8 6H
In stock (>10 pcs) | 042038132050000
€41,36
€34,18 excl. VAT
Variant: M 6x1 6H
In stock (>10 pcs) | 042038132060000
€42,58
€35,19 excl. VAT
Variant: M 8x1,25 6H
In stock (>10 pcs) | 042038132080000
€60,73
€50,19 excl. VAT
Variant: M 10x1,5 6H
In stock (>10 pcs) | 042038132100000
€77,43
€63,99 excl. VAT

Product detailed description

Catalogue number: 2280NX

High performance machine tap with spiral flutes, metric, DIN 371, TiCN coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, spheroidal an malleable cast iron, aluminium alloys, copper and zinc alloys.



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

Coating: Titanium carbonitridenitride coatingCoating:   Titanium carbonitridenitride coating

Tap standard: DIN 371Tap standard:   DIN 371

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2,5 d1)Hole type:   Blind hole (thread length < 2,5 d1)




Machined materials:

GroupMachined materialCutting speed
P2.2Structural steels <800N/mm210-12
P3.1Case hardened and nitriding steels <1200N/mm210-12
P3.2Heat-treated steels <1200N/mm210-12
P3.3Tool steels <1200N/mm210-12
M5.1Stainless steels 450-800N/mm210-12
M5.2Stainless steels 600-1000N/mm210-12
K6.2Spher. graphite and mall. cast iron12-16
N7.1Unalloyed aluminium26-32
N8.1Aluminium alloysSi<10%15-18
N8.2Aluminium alloysSi<10%12-16
N9.1Pure copper18-22
N10.1Short chipping copper alloys10-12
N10.2Long chipping copper alloys10-12
N11.1Zinc and zinc alloys10-12



Dimensions:

2280NX: kreslenka
d1Ptoll1l2d2ahole
M 30,56H5653,52,72,5
M 40,76H6374,53,43,3
M 50,86H70864,94,2
M 616H801064,95
M 81,256H901386,26,8
M 101,56H100151088,5

Additional parameters

Category: Machine taps
Coating: TiCN
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
Machined material: Structural steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Unalloyed aluminium, Zinc and zinc alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper
Product line: NX Precision Taps Product Line
Standard: DIN 371
Thread type: Metric ISO Thread
Tolerance: 6H
