    Home / Taps / Machine taps / 2290 - Machine tap with right-hand spiral flutes 40°

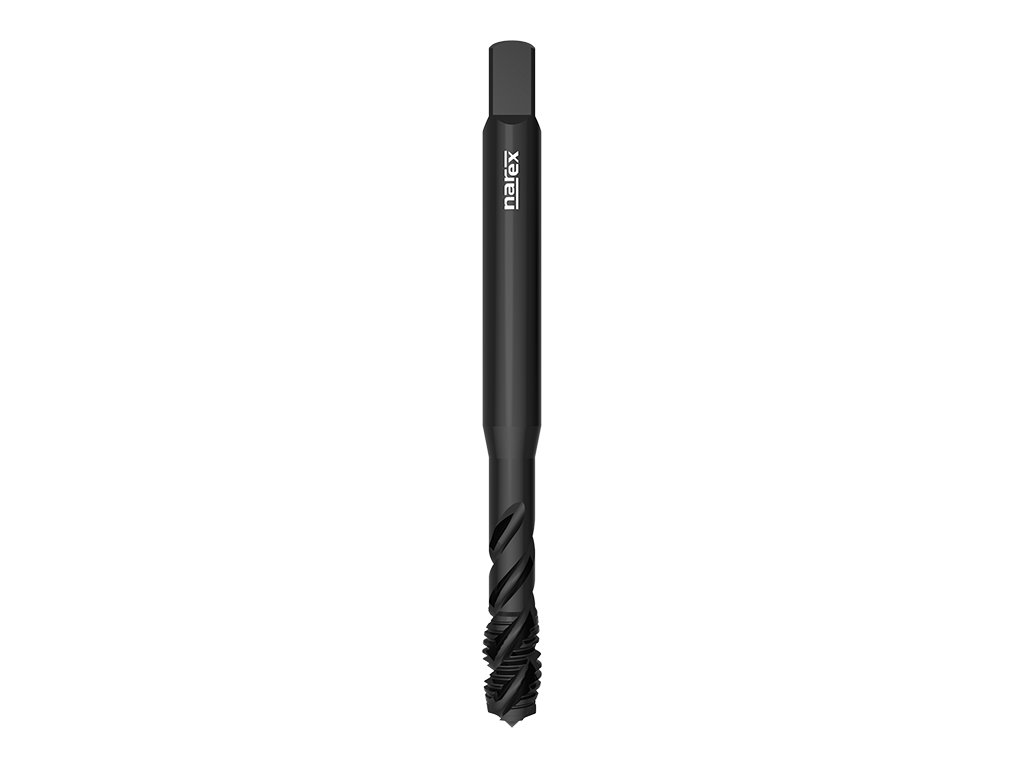

    2290 - Machine tap with right-hand spiral flutes 40°

    Code: 041537132030000
    2290 - Machine tap with right-hand spiral flutes 40°
    from €17,88 from €14,78 excl. VAT

    Choose variant

    Catalogue number: 2290

    Machine tap with spiral flutes, metric, DIN 371, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


    Detailed information

    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 041537132030000
    €17,88
    €14,78 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 041537132040000
    €17,88
    €14,78 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 041537132050000
    €18,19
    €15,03 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 041537132060000
    €19,08
    €15,77 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 041537132080000
    €21,93
    €18,12 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 041537132100000
    €25,89
    €21,40 excl. VAT

    Product detailed description

    Catalogue number: 2290

    Machine tap with spiral flutes, metric, DIN 371, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm23-5
    M5.1Stainless steels 450-800N/mm24-7
    M5.2Stainless steels 600-1000N/mm23-5



    Dimensions:

    2290: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5653,52,72,5
    M 40,76H6374,53,43,3
    M 50,86H70864,94,2
    M 616H801064,95
    M 81,256H901386,26,8
    M 101,56H100151088,5

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
    Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Case hardened and nitriding steels <1200N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
