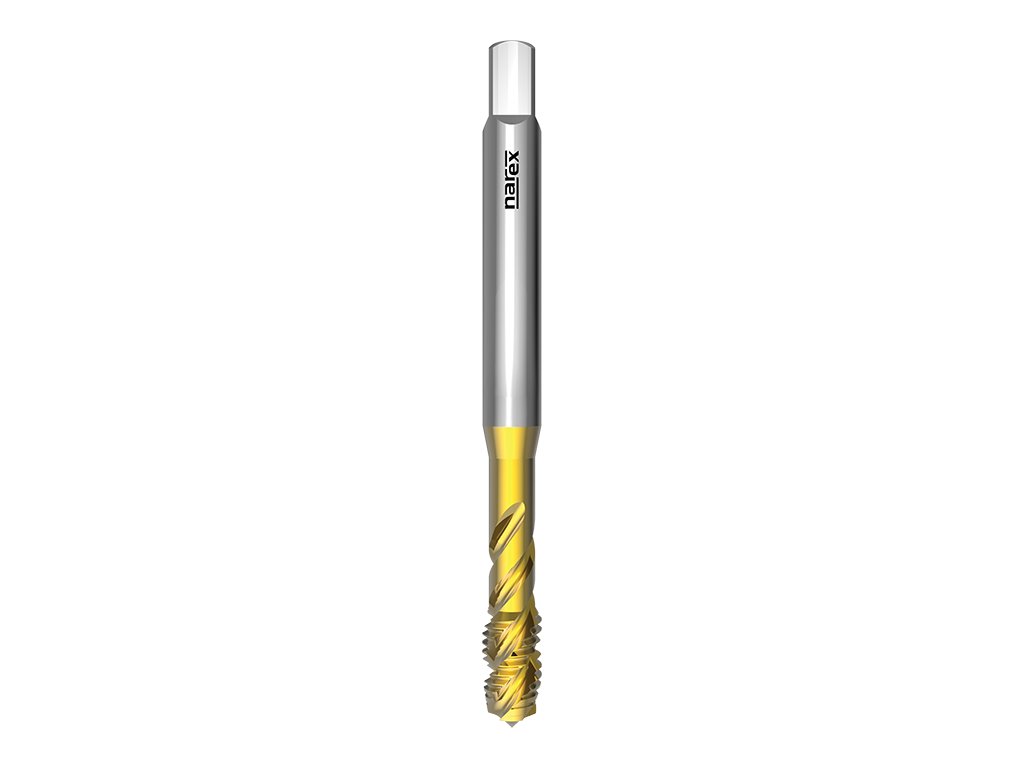

2360 - Machine tap with right-hand spiral flutes 40°
Code: 041535152030000
Variant: M 3x0,5 6H
In stock
(8 pcs)
| 041535152030000
€25,89
€21,40
excl. VAT
Variant: M 4x0,7 6H
In stock
(>10 pcs)
| 041535152040000
€25,89
€21,40
excl. VAT
Variant: M 5x0,8 6H
In stock
(>10 pcs)
| 041535152050000
€26,49
€21,89
excl. VAT
Variant: M 6x1 6H
In stock
(>10 pcs)
| 041535152060000
€27,62
€22,83
excl. VAT
Variant: M 8x1,25 6H
In stock
(10 pcs)
| 041535152080000
€31,88
€26,35
excl. VAT
Variant: M 10x1,5 6H
In stock
(>10 pcs)
| 041535152100000
€37,72
€31,17
excl. VAT
Product detailed description
Catalogue number: 2360
Machine tap with spiral flute, metric, DIN 371, TiN coated, suitable for very soft structural and unalloyed steels, free cutting steels, unalloyed copper and aluminium alloys with Si<10 %
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Super high speed steel
Coating: Titanium nitride coating
Tap standard: DIN 371
Thread tolerance: ISO 2 - 6H
Chamfer C: Length 2-3 pitch
Spiral flute angle: 40°
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 8-12 |
| P1.2 | Plain cast steels <500N/mm2 | 10-15 |
| P2.1 | Free-cutting steels <800N/mm2 | 12-15 |
| P2.2 | Structural steels <800N/mm2 | 10-14 |
| N8.1 | Aluminium alloysSi<10% | 14-20 |
| N9.1 | Pure copper | 5-8 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 3 | 0,5 | 6H | 56 | 5 | 3,5 | 2,7 | 2,5 |
| M 4 | 0,7 | 6H | 63 | 7 | 4,5 | 3,4 | 3,3 |
| M 5 | 0,8 | 6H | 70 | 8 | 6 | 4,9 | 4,2 |
| M 6 | 1 | 6H | 80 | 10 | 6 | 4,9 | 5 |
| M 8 | 1,25 | 6H | 90 | 13 | 8 | 6,2 | 6,8 |
| M 10 | 1,5 | 6H | 100 | 15 | 10 | 8 | 8,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiN |
| Hole type: | blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Aluminium alloysSi<10%, Pure copper |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 371 |
| Thread type: | Metric ISO Thread |
| Tolerance: | 6H |
