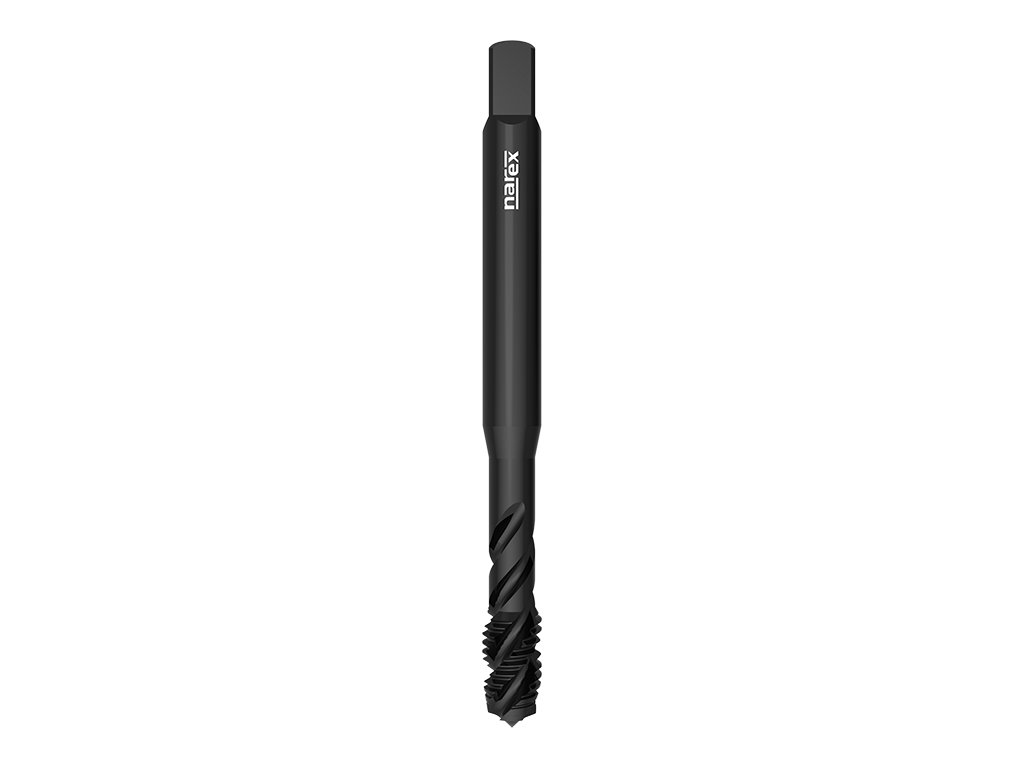

    2690 - Machine tap with right-hand spiral flutes 40°

    Code: 041537136030000
    2690 - Machine tap with right-hand spiral flutes 40°
    from €18,04 from €14,91 excl. VAT

    Choose variant

    Catalogue number: 2690

    Machine tap with spiral flute, metric, DIN 371, steam oxided, suitable for case hardened and nitriding steels, heat-treated steels, tool steels, possible use in aluminium alloys with Si>10 %



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


    Detailed information

    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 041537136030000
    €18,04
    €14,91 excl. VAT
    Variant: M 4x0,7 6H
    In stock (>10 pcs) | 041537136040000
    €18,04
    €14,91 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 041537136050000
    €18,49
    €15,28 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 041537136060000
    €19,24
    €15,90 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 041537136080000
    €22,46
    €18,56 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 041537136100000
    €26,20
    €21,65 excl. VAT

    Product detailed description

    Catalogue number: 2690

    Machine tap with spiral flute, metric, DIN 371, steam oxided, suitable for case hardened and nitriding steels, heat-treated steels, tool steels, possible use in aluminium alloys with Si>10 %



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type H: Tap for steels up to 1100 N/mm2Type H:   Tap for steels up to 1100 N/mm2

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 371Tap standard:   DIN 371

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P3.1Case hardened and nitriding steels <1200N/mm23-5
    P3.2Heat-treated steels <1200N/mm23-5



    Dimensions:

    2690: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5653,52,72,5
    M 40,76H6374,53,43,3
    M 50,86H70864,94,2
    M 616H801064,95
    M 81,256H901386,26,8
    M 101,56H100151088,5

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
    Machined material: Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: DIN 371
    Thread type: Metric ISO Thread
    Tolerance: 6H
