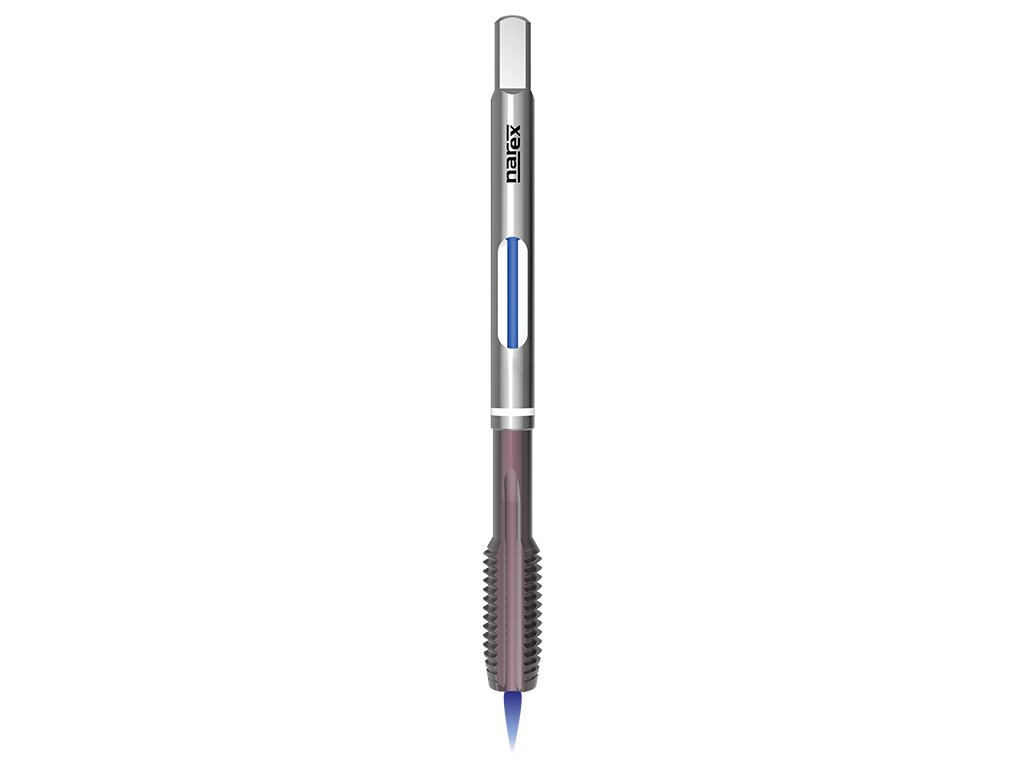

3080IKZ - Machine tap with straight flutes
Code: 041638228050000
Variant: M 5x0,8 6HX
Currently unavailable
| 041638228050000
€49,14
€40,61
excl. VAT
Variant: M 6x1 6HX
Currently unavailable
| 041638228060000
€52,08
€43,04
excl. VAT
Variant: M 8x1 6HX
Currently unavailable
| 041638428087000
€65,24
€53,92
excl. VAT
Variant: M 8x1,25 6HX
Currently unavailable
| 041638228080000
€55,22
€45,64
excl. VAT
Variant: M 10x1 6HX
Currently unavailable
| 041638428107000
€68,46
€56,58
excl. VAT
Variant: M 10x1,25 6HX
Currently unavailable
| 041638428106000
€79,69
€65,86
excl. VAT
Variant: M 10x1,5 6HX
In stock
(5 pcs)
| 041638228100000
€62,10
€51,32
excl. VAT
Variant: M 12x1 6HX
Currently unavailable
| 041638428127000
€83,74
€69,21
excl. VAT
Variant: M 12x1,25 6HX
Currently unavailable
| 041638428126000
€89,36
€73,85
excl. VAT
Variant: M 12x1,5 6HX
Currently unavailable
| 041638428125000
€83,15
€68,72
excl. VAT
Variant: M 12x1,75 6HX
In stock
(7 pcs)
| 041638228120000
€76,79
€63,46
excl. VAT
Variant: M 14x1,5 6HX
In stock
(1 pcs)
| 041638428145000
€95,71
€79,10
excl. VAT
Variant: M 14x2 6HX
Currently unavailable
| 041638228140000
€85,91
€71
excl. VAT
Product detailed description
Catalogue number: 3080IKZ
Machine tap with straight flutes with axial internal cooling, metric, DIN 376, DIN 374, TiCN coated, suitable for grey cast iron, aluminium alloys with Si>10 %
Features:
Thread M: ISO Metric coarse thread
Thread MF: ISO Metric fine thread
Profile sketch: 60°
Thread standard: DIN 13
Type GG: Tap for cast iron
Tap material: Super high speed steel
Coating: Titanium carbonitridenitride coating
Tap standard: DIN 376
Tap standard: DIN 374
Thread tolerance: ISO 2 - 6HX
Chamfer C: Length 2-3 pitch
Cooling method: Internal axial coolant supply
Hole type: Through hole (thread length L > 1,5xd1)
Hole type: Blind hole (thread length < 2 d1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| K6.1 | Grey cast iron | 15-20 |
| N8.2 | Aluminium alloysSi<10% | 12-20 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 5 | 0,8 | 6HX | 70 | 13 | 3,5 | 2,7 | 4,2 |
| M 6 | 0,75 | 6HX | 80 | 15 | 4,5 | 3,4 | 5,2 |
| M 6 | 1 | 6HX | 80 | 15 | 4,5 | 3,4 | 5 |
| M 8 | 1,25 | 6HX | 90 | 18 | 6 | 4,9 | 6,8 |
| M 8 | 1 | 6HX | 90 | 18 | 6 | 4,9 | 7 |
| M 10 | 1,25 | 6HX | 100 | 20 | 7 | 5,5 | 8,8 |
| M 10 | 1 | 6HX | 90 | 20 | 7 | 5,5 | 9 |
| M 10 | 1,5 | 6HX | 100 | 20 | 7 | 5,5 | 8,5 |
| M 12 | 1 | 6HX | 100 | 21 | 9 | 7 | 11 |
| M 12 | 1,5 | 6HX | 100 | 21 | 9 | 7 | 10,5 |
| M 12 | 1,75 | 6HX | 110 | 23 | 9 | 7 | 10,2 |
| M 12 | 1,25 | 6HX | 100 | 21 | 9 | 7 | 10,8 |
| M 14 | 2 | 6HX | 110 | 25 | 11 | 9 | 12 |
| M 14 | 1,5 | 6HX | 100 | 21 | 11 | 9 | 12,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiCN |
| Hole type: | through hole (thread length L > 1,5xd1), blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1) |
| Machined material: | Grey cast iron, Aluminium alloysSi<10% |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 374, DIN 376 |
| Thread type: | Metric ISO Thread, Metric ISO Fine Thread |
| Tolerance: | 6HX |
