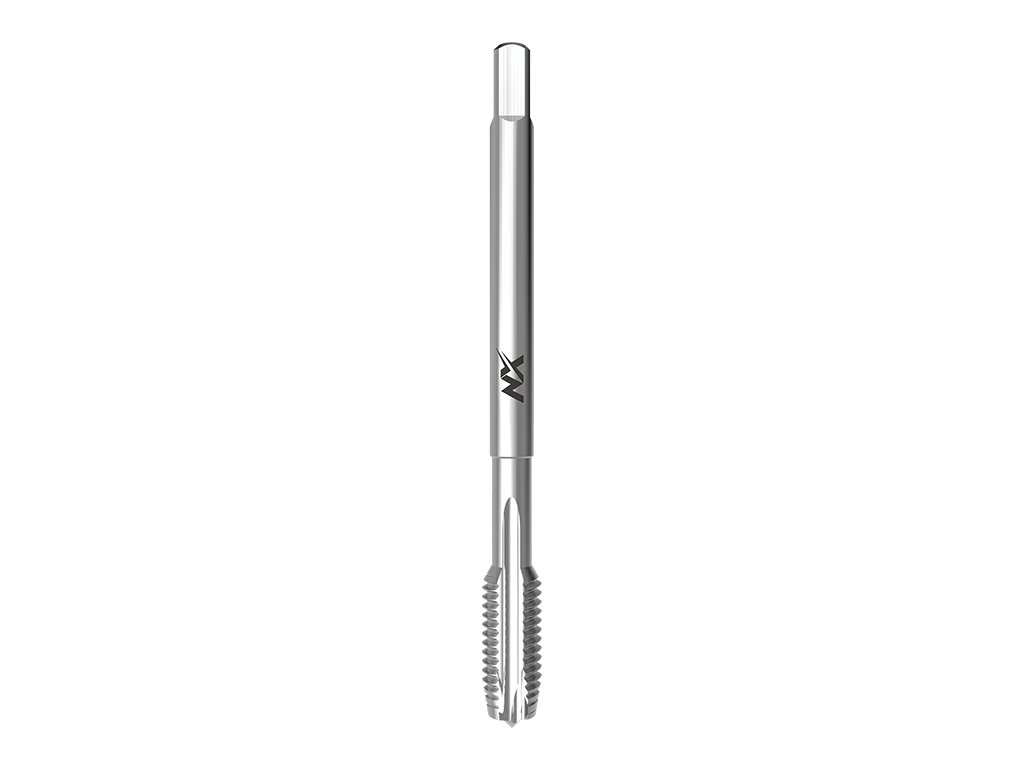

3500NX - Machine tap with straight flutes and spiral point
Code: 042031252120000
Variant: M 12x1,75 6H
In stock
(>10 pcs)
| 042031252120000
€56,24
€46,48
excl. VAT
Variant: M 14x2 6H
In stock
(>10 pcs)
| 042031252140000
€70,02
€57,87
excl. VAT
Variant: M 16x2 6H
In stock
(>10 pcs)
| 042031252160000
€79,81
€65,96
excl. VAT
Variant: M 18x2,5 6H
In stock
(>10 pcs)
| 042031252180000
€111,94
€92,51
excl. VAT
Variant: M 20x2,5 6H
In stock
(>10 pcs)
| 042031252200000
€118,86
€98,23
excl. VAT
Product detailed description
Catalogue number: 3500NX
High precision machine tap, metric, with straight flute and gun nose, DIN 376, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys Si<10 %.
Features:
Thread M: ISO Metric coarse thread
Profile sketch: 60°
Thread standard: DIN 13
Type N: Tap for steels up to 800 N/mm2
Tap material: Vanadium extra high speed steel HSSE V3
Tap standard: DIN 376
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
Group | Machined material | Cutting speed |
---|---|---|
P1.1 | Structural steels <500N/mm2 | 10-15 |
P1.2 | Plain cast steels <500N/mm2 | 12-15 |
P2.1 | Free-cutting steels <800N/mm2 | 10-15 |
P2.2 | Structural steels <800N/mm2 | 10-15 |
P2.3 | Plain cast steels <800N/mm2 | 10-15 |
N7.1 | Unalloyed aluminium | 10-15 |
N8.1 | Aluminium alloysSi<10% | 10-15 |
N8.2 | Aluminium alloysSi<10% | 10-15 |
Dimensions:
d1 | P | tol | l1 | l2 | d2 | a | hole |
---|---|---|---|---|---|---|---|
M 12 | 1,75 | 6H | 110 | 28 | 9 | 7 | 10,2 |
M 14 | 2 | 6H | 110 | 30 | 11 | 9 | 12 |
M 16 | 2 | 6H | 110 | 32 | 12 | 9 | 14 |
M 18 | 2,5 | 6H | 125 | 34 | 14 | 11 | 15,5 |
M 20 | 2,5 | 6H | 140 | 34 | 16 | 12 | 17,5 |
Additional parameters
Category: | Machine taps |
---|---|
Coating: | - |
Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Unalloyed aluminium |
Product line: | NX Precision Taps Product Line |
Standard: | DIN 376 |
Thread type: | Metric ISO Thread |
Tolerance: | 6H |
