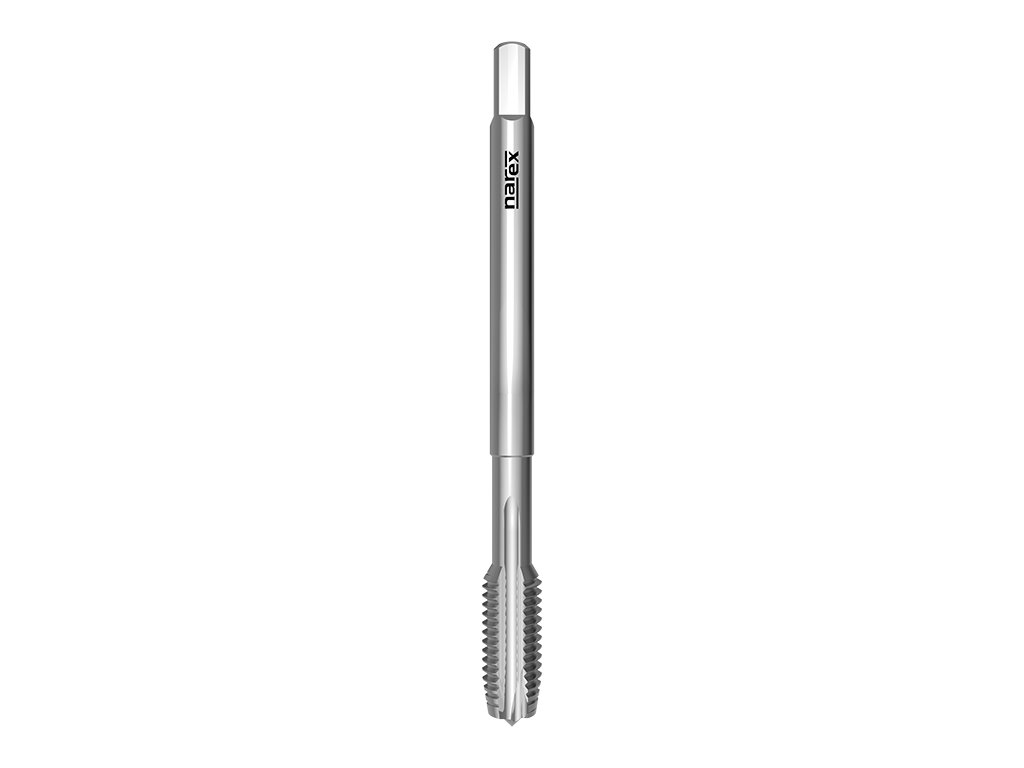

3502 - Machine tap with straight flutes and spiral point

Code: 041531620003000
from €26,49 from €21,89 excl. VAT

Choose variant

Catalogue number: 3502

Machine tap with straight flutes and spiral point, british standard pipe thread, DIN 5156, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.



Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 5156Tap standard:   DIN 5156

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


Detailed information

Variant: G 1/8"x28
In stock (>10 pcs) | 041531620003000
€26,49
€21,89 excl. VAT
Variant: G 1/4"x19
In stock (>10 pcs) | 041531620007000
€36,08
€29,82 excl. VAT
Variant: G 3/8"x19
In stock (>10 pcs) | 041531620011000
€44,08
€36,43 excl. VAT
Variant: G 1/2"x14
In stock (>10 pcs) | 041531620013000
€59,58
€49,24 excl. VAT
Variant: G 5/8"x14
In stock (>10 pcs) | 041531620015000
€73,94
€61,11 excl. VAT
Variant: G 3/4"x14
In stock (>10 pcs) | 041531620017000
€94,15
€77,81 excl. VAT
Variant: G 7/8"x14
In stock (>10 pcs) | 041531620019000
€120,49
€99,58 excl. VAT
Variant: G 1"x11
In stock (>10 pcs) | 041531620021000
€132,01
€109,10 excl. VAT
Variant: G 1 1/8"x11
In stock (>10 pcs) | 041531620022000
€181,88
€150,31 excl. VAT
Variant: G 1 1/4"x11
In stock (>10 pcs) | 041531620023000
€218,70
€180,74 excl. VAT
Variant: G 1 1/2"x11
In stock (>10 pcs) | 041531620025000
€302,89
€250,32 excl. VAT
Variant: G 1 3/4"x11
In stock (10 pcs) | 041531620027000
€409,78
€338,66 excl. VAT
Variant: G 2"x11
In stock (>10 pcs) | 041531620029000
€470,40
€388,76 excl. VAT

Product detailed description

Catalogue number: 3502

Machine tap with straight flutes and spiral point, british standard pipe thread, DIN 5156, suitable for structural steels, plain cast steels, free cutting steels, short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys with Si<10%.



Features:

Thread G: Whitworth pipe straight threadThread G:   Whitworth pipe straight thread

Profile sketch: 55°Profile sketch:   55°

Thread standard: DIN ISO 228Thread standard:   DIN ISO 228

Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

Tap material: Super high speed steelTap material:   Super high speed steel

Tap standard: DIN 5156Tap standard:   DIN 5156

Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




Machined materials:

GroupMachined materialCutting speed
P1.1Structural steels <500N/mm25-8
P1.2Plain cast steels <500N/mm26-10
P2.1Free-cutting steels <800N/mm210-14
P2.2Structural steels <800N/mm210-14
P2.3Plain cast steels <800N/mm210-14
K6.2Spher. graphite and mall. cast iron4-7
N8.1Aluminium alloysSi<10%14-20
N8.2Aluminium alloysSi<10%12-15
N10.1Short chipping copper alloys12-20



Dimensions:

3502: kreslenka
d1Ptoll1l2d2ahole
G 1/8"28902075,58,8
G 1/4"191002111911,8
G 3/8"191002112915,25
G 1/2"1412524161219
G 5/8"14125241814,521
G 3/4"1414026201624,5
G 7/8"1415028221828,25
G 1"1116030252030,75
G 1 1/8"1117030282235,5
G 1 1/4"1117030322439,5
G 1 1/2"1119032362945,25
G 1 3/4"1119032403251,3
G 2"1122040453557,2

Additional parameters

Category: Machine taps
Coating: -
Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1)
Machined material: Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys
Product line: NAREX Zdanice Product Line
Standard: DIN 5156
Thread type: Pipe Thread
Tolerance: -
