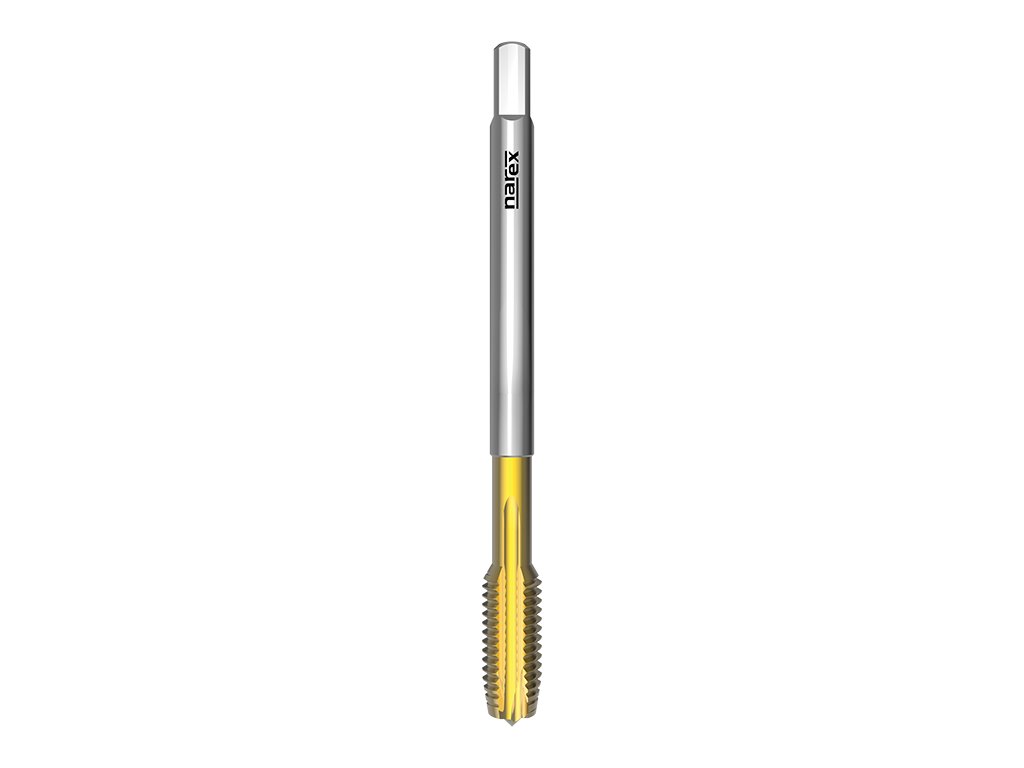

3512 - Machine tap with straight flutes and spiral point
Code: 041535620003000
Variant: G 1/8"x28
In stock
(>10 pcs)
| 041535620003000
EAN: 8595111940731
€34,42
€28,45
excl. VAT
Variant: G 1/4"x19
In stock
(>10 pcs)
| 041535620007000
EAN: 8595111940748
€46,78
€38,66
excl. VAT
Variant: G 3/8"x19
In stock
(>10 pcs)
| 041535620011000
EAN: 8595111940755
€57,48
€47,50
excl. VAT
Variant: G 1/2"x14
In stock
(>10 pcs)
| 041535620013000
EAN: 8595111940762
€77,46
€64,02
excl. VAT
Variant: G 5/8"x14
In stock
(10 pcs)
| 041535620015000
EAN: 8595111940779
€96,40
€79,67
excl. VAT
Variant: G 3/4"x14
In stock
(>10 pcs)
| 041535620017000
EAN: 8595111940786
€122,45
€101,20
excl. VAT
Variant: G 7/8"x14
In stock
(1 pcs)
| 041535620019000
EAN: 8595111940793
€156,63
€129,45
excl. VAT
Variant: G 1"x11
In stock
(6 pcs)
| 041535620021000
EAN: 8595111940809
€171,70
€141,90
excl. VAT
Variant: G 1 1/8"x11
Currently unavailable
| 041535620022000
EAN: 8595111940816
€236,29
€195,28
excl. VAT
Variant: G 1 1/4"x11
In stock
(2 pcs)
| 041535620023000
EAN: 8595111940823
€284,41
€235,05
excl. VAT
Variant: G 1 1/2"x11
In stock
(1 pcs)
| 041535620025000
EAN: 8595111940830
€393,83
€325,48
excl. VAT
Variant: G 2"x11
In stock
(1 pcs)
| 041535620029000
EAN: 8595111940847
€611,40
€505,29
excl. VAT
Product detailed description
Catalogue number: 3512
Machine tap with straight flutes and spiral point, british standard pipe thread, DIN 5156, TiN coated, suitable for structural steels, plain cast steels, free cutting steels, possible use in short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys Si<10%,
Features:
Thread G: Whitworth pipe straight thread
Profile sketch: 55°
Thread standard: DIN ISO 228
Type N: Tap for steels up to 800 N/mm2
Tap material: Super high speed steel
Coating: Titanium nitride coating
Tap standard: DIN 5156
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 6-10 |
| P1.2 | Plain cast steels <500N/mm2 | 8-12 |
| P2.1 | Free-cutting steels <800N/mm2 | 10-14 |
| P2.2 | Structural steels <800N/mm2 | 12-15 |
| P2.3 | Plain cast steels <800N/mm2 | 12-15 |
| K6.2 | Spher. graphite and mall. cast iron | 6-8 |
| N8.1 | Aluminium alloysSi<10% | 15-30 |
| N8.2 | Aluminium alloysSi<10% | 14-20 |
| N10.1 | Short chipping copper alloys | 15-25 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| G 1/8" | 28 | 90 | 20 | 7 | 5,5 | 8,8 | |
| G 1/4" | 19 | 100 | 21 | 11 | 9 | 11,8 | |
| G 3/8" | 19 | 100 | 21 | 12 | 9 | 15,25 | |
| G 1/2" | 14 | 125 | 24 | 16 | 12 | 19 | |
| G 5/8" | 14 | 125 | 24 | 18 | 14,5 | 21 | |
| G 3/4" | 14 | 140 | 26 | 20 | 16 | 24,5 | |
| G 7/8" | 14 | 150 | 28 | 22 | 18 | 28,25 | |
| G 1" | 11 | 160 | 30 | 25 | 20 | 30,75 | |
| G 1 1/8" | 11 | 170 | 30 | 28 | 22 | 35,5 | |
| G 1 1/4" | 11 | 170 | 30 | 32 | 24 | 39,5 | |
| G 1 1/2" | 11 | 190 | 32 | 36 | 29 | 45,25 | |
| G 1 3/4" | 11 | 190 | 32 | 40 | 32 | 51,3 | |
| G 2" | 11 | 220 | 40 | 45 | 35 | 57,2 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiN |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 5156 |
| Thread type: | Pipe Thread |
| Tolerance: | - |
