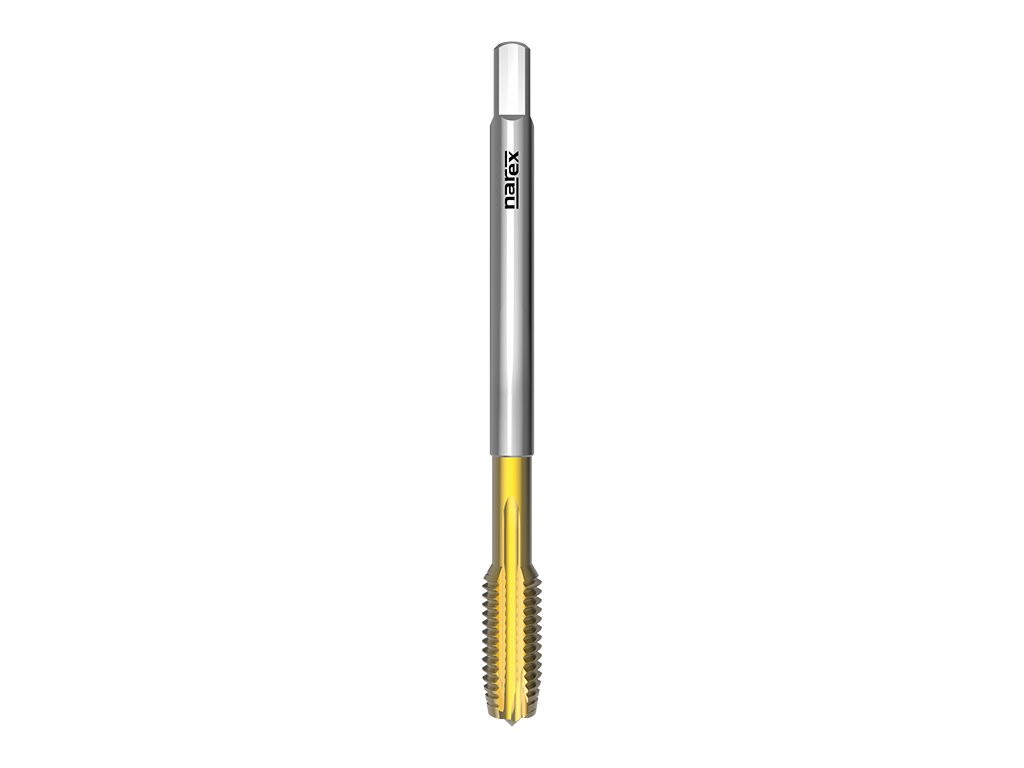

3514 - Machine tap with straight flutes and spiral point
Code: 041535920012000
Variant: UNC 7/16x14 2B
In stock
(>10 pcs)
| 041535920012000
€34,05
€28,14
excl. VAT
Variant: UNC 1/2x13 2B
In stock
(>10 pcs)
| 041535920013000
€36,75
€30,37
excl. VAT
Variant: UNC 9/16x12 2B
In stock
(5 pcs)
| 041535920014000
€55,09
€45,53
excl. VAT
Variant: UNC 5/8x11 2B
In stock
(>10 pcs)
| 041535920015000
€46,71
€38,60
excl. VAT
Variant: UNC 3/4x10 2B
In stock
(>10 pcs)
| 041535920017000
€63,09
€52,14
excl. VAT
Variant: UNC 7/8x9 2B
In stock
(6 pcs)
| 041535920019000
€76,94
€63,59
excl. VAT
Variant: UNC 1x8 2B
In stock
(>10 pcs)
| 041535920021000
€100,37
€82,95
excl. VAT
Variant: UNC 1 1/8x7 2B
Currently unavailable
| 041535920022000
€120,49
€99,58
excl. VAT
Product detailed description
Catalogue number: 3514
Machine tap with straight flutes and spiral point, unified national coarse thread, DIN 376, TiN coated, suitable for structural steels, plain cast steels, free cutting steels, possible use in short chipping copper alloys, spheroidal and malleable cast iron, aluminium alloys Si<10%,
Features:
Thread UNC: Unified coarse thread
Profile sketch: 60°
Type N: Tap for steels up to 800 N/mm2
Tap material: Super high speed steel
Coating: Titanium nitride coating
Tap standard: ~ DIN 376
Thread tolerance: 2B
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P1.1 | Structural steels <500N/mm2 | 6-10 |
| P1.2 | Plain cast steels <500N/mm2 | 8-12 |
| P2.1 | Free-cutting steels <800N/mm2 | 10-14 |
| P2.2 | Structural steels <800N/mm2 | 12-15 |
| P2.3 | Plain cast steels <800N/mm2 | 12-15 |
| K6.2 | Spher. graphite and mall. cast iron | 6-8 |
| N8.1 | Aluminium alloysSi<10% | 15-30 |
| N8.2 | Aluminium alloysSi<10% | 14-20 |
| N10.1 | Short chipping copper alloys | 15-25 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| UNC 7/16 | 14 | 2B | 100 | 20 | 8 | 6,2 | 9,4 |
| UNC 1/2 | 13 | 2B | 110 | 23 | 9 | 7 | 10,75 |
| UNC 9/16 | 12 | 2B | 110 | 25 | 11 | 9 | 12,25 |
| UNC 5/8 | 11 | 2B | 110 | 25 | 12 | 9 | 13,5 |
| UNC 3/4 | 10 | 2B | 125 | 30 | 14 | 11 | 16,5 |
| UNC 7/8 | 9 | 2B | 140 | 30 | 18 | 14,5 | 19,5 |
| UNC 1 | 8 | 2B | 160 | 36 | 18 | 14,5 | 22,25 |
| UNC 1 1/8 | 7 | 2B | 180 | 40 | 22 | 18 | 25 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | TiN |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1) |
| Machined material: | Structural steels <500N/mm2, Plain cast steels <500N/mm2, Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Short chipping copper alloys |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN ≈376 |
| Thread type: | Unified Course Thread UNC |
| Tolerance: | 2B |
