    Home / Taps / Machine taps / 3540-HEX - Machine tap with straight flutes and spiral point

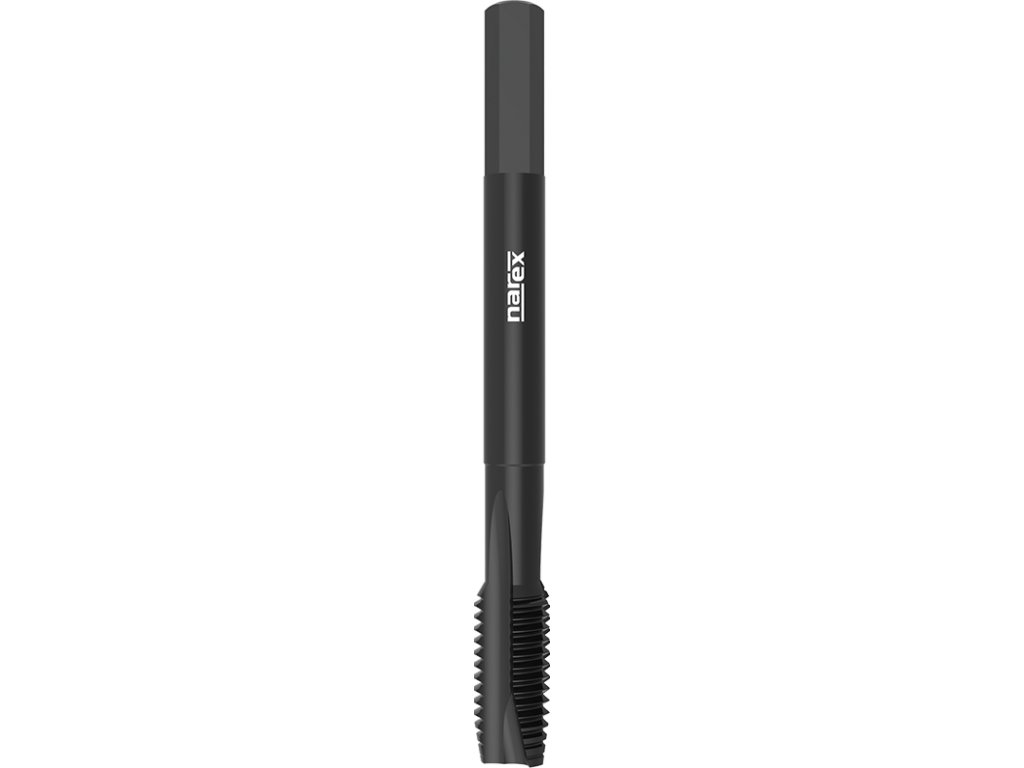

    3540-HEX - Machine tap with straight flutes and spiral point

    Code: 04453725212000H
    Novinka
    3540-HEX - Machine tap with straight flutes and spiral point
    from €21,10 from €17,44 excl. VAT

    Choose variant

    Catalogue number: 3540-HEX

    Machine taps with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for structural steels, plain cast steels, free cutting steels, zinc alloys, aluminium alloys Si<10%, possible use in aluminium alloys Si>10%.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 12x1,75 6H
    Currently unavailable | 04453725212000H
    €21,10
    €17,44 excl. VAT
    Variant: M 16x2 6H
    In stock (>10 pcs) | 04453725216000H
    €29,95
    €24,75 excl. VAT

    Product detailed description

    Catalogue number: 3540-HEX

    Machine taps with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for structural steels, plain cast steels, free cutting steels, zinc alloys, aluminium alloys Si<10%, possible use in aluminium alloys Si>10%.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.2Plain cast steels <500N/mm26-10
    P2.2Structural steels <800N/mm210-12
    P2.3Plain cast steels <800N/mm212-15
    N8.1Aluminium alloysSi<10%14-20
    N8.2Aluminium alloysSi<10%12-15
    N11.1Zinc and zinc alloys10-12



    Dimensions:

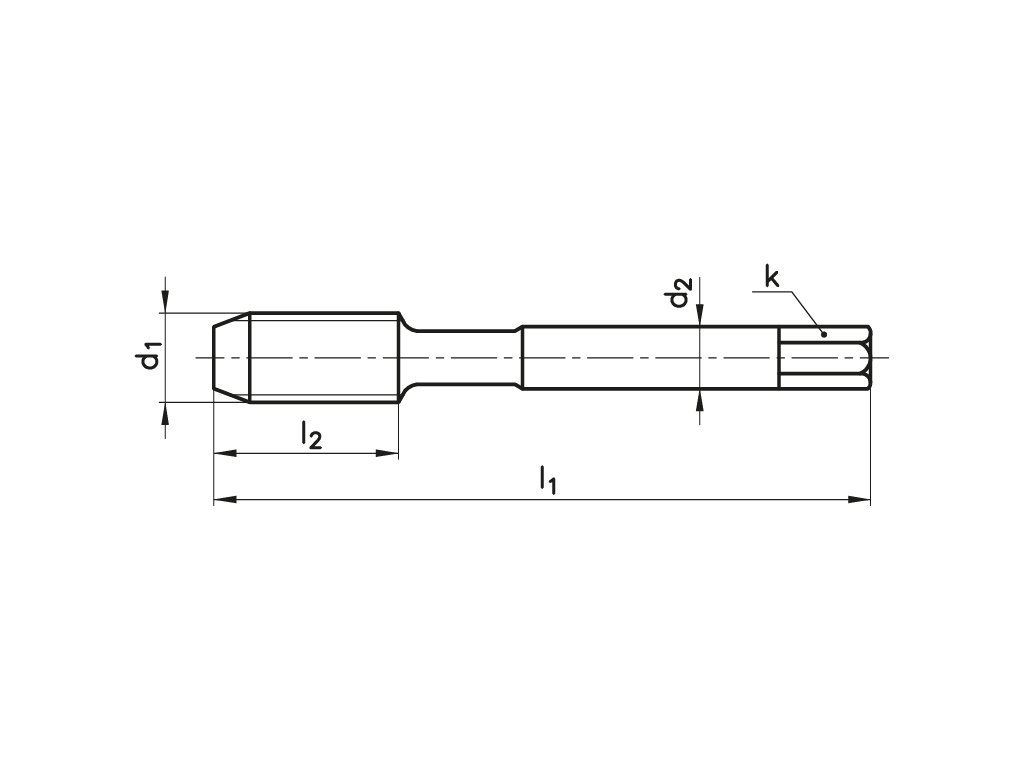

    3540-HEX: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5692,2-2,5
    M 40,56H63122,82,13,5
    M 40,76H63122,82,13,3
    M 50,86H70133,52,74,2
    M 50,56H70133,52,74,5
    M 60,756H80154,53,45,2
    M 616H80154,53,45
    M 60,56H80154,53,45,5
    M 70,756H80155,54,36,2
    M 716H80155,54,36
    M 80,756H801564,97,2
    M 81,256H901864,96,8
    M 816H901864,97
    M 100,756H902075,59,2
    M 101,256H1002075,58,8
    M 101,56H1002075,58,5
    M 1016H902075,59
    M 1216H100219711
    M 121,56H100219710,5
    M 121,756H110239710,2
    M 121,256H100219710,8
    M 121,756G110239710,2
    M 1416H1002111913
    M 1426H1102511912
    M 1426G1102511912
    M 141,56H1002111912,5
    M 141,256H1002111912,8
    M 151,56H1002112913,5
    M 1516H1002112914
    M 1616H1002112915
    M 1626H1102512914
    M 1626G1102512914
    M 161,56H1002112914,5
    M 1816H11024141117
    M 1826H12524141116
    M 182,56H12530141115,5
    M 181,56H11024141116,5
    M 2016H12524161219
    M 2026H14024161218
    M 201,56H12524161218,5
    M 202,56H14030161217,5
    M 2216H125241814,521
    M 222,56H140301814,519,5
    M 2226H140241814,520
    M 221,56H125241814,520,5
    M 2416H140261814,523
    M 2426H140261814,522
    M 2436H160361814,521
    M 241,56H140261814,522,5
    M 251,56H140261814,523,5
    M 261,56H140261814,524,5
    M 2726H14026201625
    M 271,56H14026201625,5
    M 2716H14026201626
    M 2736H16036201624
    M 2826H14026201626
    M 281,56H14026201626,5
    M 301,56H15028221828,5
    M 303,56H18040221826,5
    M 3016H15028221829
    M 3026H15028221828
    M 321,56H15028221830,5
    M 331,56H16030252031,5
    M 333,56H18042252029,5
    M 3326H16030252031
    M 351,56H17030282233,5
    M 3626H17030282234
    M 361,56H17030282234,5
    M 3646H20050282232
    M 3636H20042282233

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
    Machined material: Plain cast steels <500N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Zinc and zinc alloys
    Product line: NAREX Zdanice Product Line
    Standard: DIN 374, DIN 376
    Thread type: Metric ISO Thread, Metric ISO Fine Thread
    Tolerance: 6H
