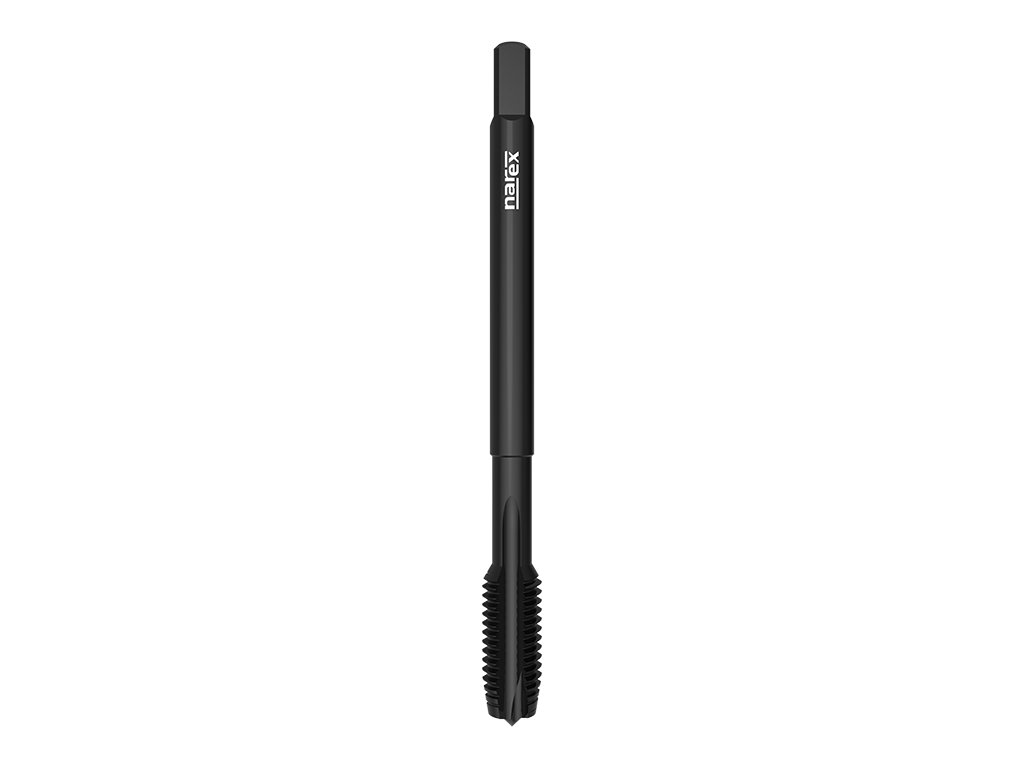

    3540 - Machine tap with straight flutes and spiral point

    Code: 041537252050000
    3540 - Machine tap with straight flutes and spiral point
    from €13,84 from €11,44 excl. VAT

    Choose variant

    Catalogue number: 3540

    Machine taps with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for structural steels, plain cast steels, free cutting steels, zinc alloys, aluminium alloys Si<10%, possible use in aluminium alloys Si>10%.



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)


    Detailed information

    Variant: M 3x0,5 6H
    In stock (>10 pcs) | 041537252030000 EAN: 8595111902258
    €14,13
    €11,68 excl. VAT
    Variant: M 4x0,5 6H
    In stock (10 pcs) | 041537452041000 EAN: 8595111904801
    €20,05
    €16,57 excl. VAT
    Variant: M 4x0,7 6H
    In stock (5 pcs) | 041537252040000 EAN: 8595111902265
    €14,30
    €11,82 excl. VAT
    Variant: M 5x0,5 6H
    In stock (>10 pcs) | 041537452051000 EAN: 8595111904818
    €21,32
    €17,62 excl. VAT
    Variant: M 5x0,8 6H
    In stock (>10 pcs) | 041537252050000 EAN: 8595111902272
    €13,84
    €11,44 excl. VAT
    Variant: M 6x0,5 6H
    In stock (>10 pcs) | 041537452061000 EAN: 8595111904825
    €21,48
    €17,75 excl. VAT
    Variant: M 6x0,75 6H
    In stock (>10 pcs) | 041537452068000 EAN: 8595111904832
    €21,25
    €17,56 excl. VAT
    Variant: M 6x1 6H
    In stock (>10 pcs) | 041537252060000 EAN: 8595111902289
    €14,07
    €11,63 excl. VAT
    Variant: M 7x0,75 6H
    Currently unavailable | 041537452078000 EAN: 8595111946726
    €23,20
    €19,17 excl. VAT
    Variant: M 7x1 6H
    In stock (>10 pcs) | 041537252070000 EAN: 8595111945484
    €17,15
    €14,17 excl. VAT
    Variant: M 8x0,75 6H
    In stock (>10 pcs) | 041537452088000 EAN: 8595111904856
    €23,58
    €19,49 excl. VAT
    Variant: M 8x1 6H
    In stock (>10 pcs) | 041537452087000 EAN: 8595111904863
    €21,48
    €17,75 excl. VAT
    Variant: M 8x1,25 6H
    In stock (>10 pcs) | 041537252080000 EAN: 8595111902296
    €15,11
    €12,49 excl. VAT
    Variant: M 10x0,75 6H
    In stock (>10 pcs) | 041537452108000 EAN: 8595111904870
    €30,76
    €25,42 excl. VAT
    Variant: M 10x1 6H
    In stock (>10 pcs) | 041537452107000 EAN: 8595111904887
    €22,46
    €18,56 excl. VAT
    Variant: M 10x1,25 6H
    In stock (>10 pcs) | 041537452106000 EAN: 8595111904894
    €28
    €23,14 excl. VAT
    Variant: M 10x1,5 6H
    In stock (>10 pcs) | 041537252100000 EAN: 8595111902302
    €17,21
    €14,22 excl. VAT
    Variant: M 12x1 6H
    In stock (>10 pcs) | 041537452127000 EAN: 8595111904900
    €25,83
    €21,35 excl. VAT
    Variant: M 12x1,25 6H
    In stock (>10 pcs) | 041537452126000 EAN: 8595111904917
    €29,27
    €24,19 excl. VAT
    Variant: M 12x1,5 6H
    In stock (>10 pcs) | 041537452125000 EAN: 8595111904924
    €24,56
    €20,30 excl. VAT
    Variant: M 12x1,75 6H
    In stock (>10 pcs) | 041537252120000 EAN: 8595111902319
    €21,10
    €17,44 excl. VAT
    Variant: M 14x1 6H
    In stock (1 pcs) | 041537452147000 EAN: 8595111904931
    €34,42
    €28,45 excl. VAT
    Variant: M 14x1,25 6H
    In stock (>10 pcs) | 041537452146000 EAN: 8595111904948
    €32,85
    €27,15 excl. VAT
    Variant: M 14x1,5 6H
    In stock (>10 pcs) | 041537452145000 EAN: 8595111904955
    €32,55
    €26,90 excl. VAT
    Variant: M 14x2 6H
    In stock (>10 pcs) | 041537252140000 EAN: 8595111902326
    €26,20
    €21,65 excl. VAT
    Variant: M 15x1 6H
    Currently unavailable | 041537452157000 EAN: 8595111946757
    €40,93
    €33,83 excl. VAT
    Variant: M 15x1,5 6H
    In stock (>10 pcs) | 041537452155000 EAN: 8595111970929
    €53
    €43,80 excl. VAT
    Variant: M 16x1 6H
    In stock (4 pcs) | 041537452167000 EAN: 8595111904962
    €38,85
    €32,11 excl. VAT
    Variant: M 16x1,5 6H
    In stock (>10 pcs) | 041537452165000 EAN: 8595111904979
    €37,12
    €30,68 excl. VAT
    Variant: M 16x2 6H
    In stock (>10 pcs) | 041537252160000 EAN: 8595111902333
    €29,86
    €24,68 excl. VAT
    Variant: M 18x1 6H
    In stock (>10 pcs) | 041537452187000 EAN: 8595111946771
    €50
    €41,32 excl. VAT
    Variant: M 18x1,5 6H
    In stock (>10 pcs) | 041537452185000 EAN: 8595111904986
    €45,88
    €37,92 excl. VAT
    Variant: M 18x2 6H
    In stock (2 pcs) | 041537452184000 EAN: 8595111946764
    €51,26
    €42,36 excl. VAT
    Variant: M 18x2,5 6H
    In stock (>10 pcs) | 041537252180000 EAN: 8595111902340
    €41,70
    €34,46 excl. VAT
    Variant: M 20x1 6H
    In stock (7 pcs) | 041537452207000 EAN: 8595111904993
    €53,89
    €44,54 excl. VAT
    Variant: M 20x1,5 6H
    In stock (9 pcs) | 041537452205000 EAN: 8595111905006
    €51,35
    €42,44 excl. VAT
    Variant: M 20x2 6H
    Currently unavailable | 041537452204000 EAN: 8595111946788
    €69,97
    €57,83 excl. VAT
    Variant: M 20x2,5 6H
    In stock (>10 pcs) | 041537252200000 EAN: 8595111902357
    €44,53
    €36,80 excl. VAT
    Variant: M 22x1 6H
    In stock (2 pcs) | 041537452227000 EAN: 8595111946801
    €74,98
    €61,97 excl. VAT
    Variant: M 22x1,5 6H
    In stock (>10 pcs) | 041537452225000 EAN: 8595111905013
    €54,41
    €44,97 excl. VAT
    Variant: M 22x2 6H
    Currently unavailable | 041537452224000 EAN: 8595111946795
    €74,98
    €61,97 excl. VAT
    Variant: M 22x2,5 6H
    In stock (>10 pcs) | 041537252220000 EAN: 8595111902364
    €61,75
    €51,03 excl. VAT
    Variant: M 24x1 6H
    Currently unavailable | 041537452247000 EAN: 8595111946825
    €80,09
    €66,19 excl. VAT
    Variant: M 24x1,5 6H
    In stock (8 pcs) | 041537452245000 EAN: 8595111905020
    €59,87
    €49,48 excl. VAT
    Variant: M 24x2 6H
    In stock (10 pcs) | 041537452244000 EAN: 8595111946818
    €67,43
    €55,73 excl. VAT
    Variant: M 24x3 6H
    In stock (>10 pcs) | 041537252240000 EAN: 8595111902371
    €58,44
    €48,30 excl. VAT
    Variant: M 25x1,5 6H
    In stock (9 pcs) | 041537452255000 EAN: 8595111946832
    €107,54
    €88,88 excl. VAT
    Variant: M 26x1,5 6H
    In stock (1 pcs) | 041537452265000 EAN: 8595111946849
    €77,09
    €63,71 excl. VAT
    Variant: M 27x1 6H
    Currently unavailable | 041537452277000 EAN: 8595111965666
    €99,69
    €82,39 excl. VAT
    Variant: M 27x1,5 6H
    In stock (5 pcs) | 041537452275000 EAN: 8595111905037
    €86,66
    €71,62 excl. VAT
    Variant: M 27x2 6H
    In stock (4 pcs) | 041537452274000 EAN: 8595111946856
    €90,64
    €74,91 excl. VAT
    Variant: M 27x3 6H
    In stock (>10 pcs) | 041537252270000 EAN: 8595111902388
    €78,06
    €64,51 excl. VAT
    Variant: M 28x1,5 6H
    Currently unavailable | 041537452285000 EAN: 8595111946870
    €88,61
    €73,23 excl. VAT
    Variant: M 28x2 6H
    Currently unavailable | 041537452284000 EAN: 8595111946863
    €95,66
    €79,06 excl. VAT
    Variant: M 30x1 6H
    In stock (1 pcs) | 041537452307000 EAN: 8595111946894
    €111,44
    €92,10 excl. VAT
    Variant: M 30x1,5 6H
    In stock (9 pcs) | 041537452305000 EAN: 8595111905044
    €95,13
    €78,62 excl. VAT
    Variant: M 30x2 6H
    Currently unavailable | 041537452304000 EAN: 8595111946887
    €103,81
    €85,79 excl. VAT
    Variant: M 30x3,5 6H
    In stock (4 pcs) | 041537252300000 EAN: 8595111902395
    €94,45
    €78,06 excl. VAT
    Variant: M 32x1,5 6H
    In stock (2 pcs) | 041537452325000 EAN: 8595111946900
    €113,61
    €93,89 excl. VAT
    Variant: M 33x1,5 6H
    In stock (2 pcs) | 041537452335000 EAN: 8595111946924
    €126,34
    €104,41 excl. VAT
    Variant: M 33x2 6H
    Currently unavailable | 041537452334000 EAN: 8595111946917
    €127,46
    €105,34 excl. VAT
    Variant: M 33x3,5 6H
    In stock (2 pcs) | 041537252330000 EAN: 8595111945491
    €111,90
    €92,48 excl. VAT
    Variant: M 35x1,5 6H
    Currently unavailable | 041537452355000 EAN: 8595111946931
    €154,47
    €127,66 excl. VAT
    Variant: M 36x1,5 6H
    In stock (2 pcs) | 041537452365000 EAN: 8595111946962
    €140,40
    €116,03 excl. VAT
    Variant: M 36x2 6H
    In stock (1 pcs) | 041537452364000 EAN: 8595111946955
    €157,70
    €130,33 excl. VAT
    Variant: M 36x3 6H
    In stock (2 pcs) | 041537452363000 EAN: 8595111946948
    €174,83
    €144,49 excl. VAT
    Variant: M 36x4 6H
    In stock (5 pcs) | 041537252360000 EAN: 8595111945507
    €138,76
    €114,68 excl. VAT
    Variant: M 12x1,75 6G
    In stock (10 pcs) | 041537254120000 EAN: 8595111969404
    €21,10
    €17,44 excl. VAT
    Variant: M 16x2 6G
    Currently unavailable | 041537254160000 EAN: 8595111971001
    €29,86
    €24,68 excl. VAT

    Product detailed description

    Catalogue number: 3540

    Machine taps with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, steam oxided, suitable for structural steels, plain cast steels, free cutting steels, zinc alloys, aluminium alloys Si<10%, possible use in aluminium alloys Si>10%.



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type N: Tap for steels up to 800 N/mm2Type N:   Tap for steels up to 800 N/mm2

    Tap material: Super high speed steelTap material:   Super high speed steel

    Coating: OxidationCoating:   Oxidation

    Tap standard: DIN 376Tap standard:   DIN 376

    Tap standard: DIN 374Tap standard:   DIN 374

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer B: Length 3,5-6 pitchChamfer B:   Length 3,5-6 pitch

    Hole type: Through hole (thread length L > 1,5xd1)Hole type:   Through hole (thread length L > 1,5xd1)




    Machined materials:

    GroupMachined materialCutting speed
    P1.2Plain cast steels <500N/mm26-10
    P2.2Structural steels <800N/mm210-12
    P2.3Plain cast steels <800N/mm212-15
    N8.1Aluminium alloysSi<10%14-20
    N8.2Aluminium alloysSi<10%12-15
    N11.1Zinc and zinc alloys10-12



    Dimensions:

    3540: kreslenka
    d1Ptoll1l2d2ahole
    M 30,56H5692,2-2,5
    M 40,56H63122,82,13,5
    M 40,76H63122,82,13,3
    M 50,86H70133,52,74,2
    M 50,56H70133,52,74,5
    M 60,756H80154,53,45,2
    M 616H80154,53,45
    M 60,56H80154,53,45,5
    M 70,756H80155,54,36,2
    M 716H80155,54,36
    M 80,756H801564,97,2
    M 81,256H901864,96,8
    M 816H901864,97
    M 100,756H902075,59,2
    M 101,256H1002075,58,8
    M 101,56H1002075,58,5
    M 1016H902075,59
    M 1216H100219711
    M 121,56H100219710,5
    M 121,756H110239710,2
    M 121,256H100219710,8
    M 121,756G110239710,2
    M 1416H1002111913
    M 1426H1102511912
    M 1426G1102511912
    M 141,56H1002111912,5
    M 141,256H1002111912,8
    M 151,56H1002112913,5
    M 1516H1002112914
    M 1616H1002112915
    M 1626H1102512914
    M 1626G1102512914
    M 161,56H1002112914,5
    M 1816H11024141117
    M 1826H12524141116
    M 182,56H12530141115,5
    M 181,56H11024141116,5
    M 2016H12524161219
    M 2026H14024161218
    M 201,56H12524161218,5
    M 202,56H14030161217,5
    M 2216H125241814,521
    M 222,56H140301814,519,5
    M 2226H140241814,520
    M 221,56H125241814,520,5
    M 2416H140261814,523
    M 2426H140261814,522
    M 2436H160361814,521
    M 241,56H140261814,522,5
    M 251,56H140261814,523,5
    M 261,56H140261814,524,5
    M 2726H14026201625
    M 271,56H14026201625,5
    M 2716H14026201626
    M 2736H16036201624
    M 2826H14026201626
    M 281,56H14026201626,5
    M 301,56H15028221828,5
    M 303,56H18040221826,5
    M 3016H15028221829
    M 3026H15028221828
    M 321,56H15028221830,5
    M 331,56H16030252031,5
    M 333,56H18042252029,5
    M 3326H16030252031
    M 351,56H17030282233,5
    M 3626H17030282234
    M 361,56H17030282234,5
    M 3646H20050282232
    M 3636H20042282233

    Additional parameters

    Category: Machine taps
    Coating: OX
    Hole type: through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1)
    Machined material: Plain cast steels <500N/mm2, Structural steels <800N/mm2, Plain cast steels <800N/mm2, Aluminium alloysSi<10%, Zinc and zinc alloys
    Product line: NAREX Zdanice Product Line
    Standard: DIN 374, DIN 376
    Thread type: Metric ISO Thread, Metric ISO Fine Thread
    Tolerance: 6H
