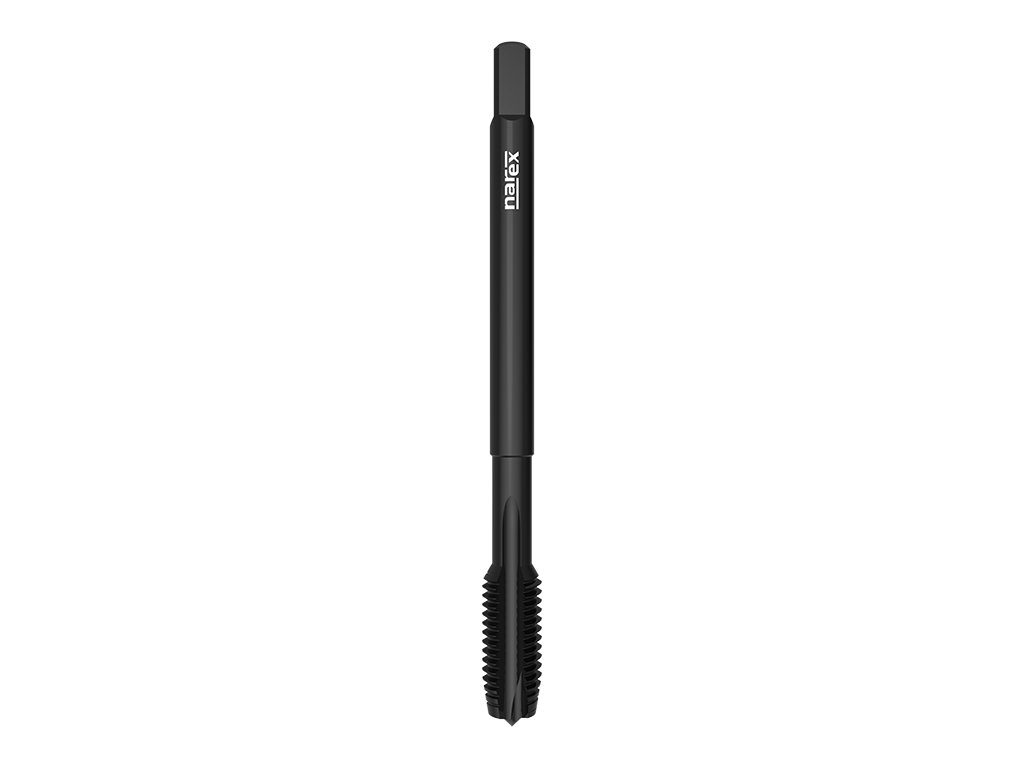

3692 - Machine tap with straight flutes and spiral point
Code: 041537622003000
Variant: G 1/8"x28
In stock
(>10 pcs)
| 041537622003000
€37,96
€31,37
excl. VAT
Variant: G 1/4"x19
In stock
(>10 pcs)
| 041537622007000
€51,57
€42,62
excl. VAT
Variant: G 3/8"x19
In stock
(>10 pcs)
| 041537622011000
€63,32
€52,33
excl. VAT
Variant: G 1/2"x14
In stock
(>10 pcs)
| 041537622013000
€85,33
€70,52
excl. VAT
Variant: G 5/8"x14
In stock
(2 pcs)
| 041537622015000
€106,06
€87,65
excl. VAT
Variant: G 3/4"x14
In stock
(>10 pcs)
| 041537622017000
€134,72
€111,34
excl. VAT
Variant: G 7/8"x14
Currently unavailable
| 041537622019000
€172,59
€142,64
excl. VAT
Variant: G 1"x11
In stock
(>10 pcs)
| 041537622021000
€188,98
€156,18
excl. VAT
Variant: G 1 1/8"x11
In stock
(5 pcs)
| 041537622022000
€260,32
€215,14
excl. VAT
Variant: G 1 1/4"x11
In stock
(5 pcs)
| 041537622023000
€313,09
€258,75
excl. VAT
Variant: G 1 1/2"x11
In stock
(2 pcs)
| 041537622025000
€433,49
€358,26
excl. VAT
Product detailed description
Catalogue number: 3692
Machine tap with straight flutes and spiral point, british standard pipe thread, DIN 5156, steam oxided, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2.
Features:
Thread G: Whitworth pipe straight thread
Profile sketch: 55°
Thread standard: DIN ISO 228
Type VA: Tap for stainless steels
Tap material: Super high speed steel
Coating: Oxidation
Tap standard: DIN 5156
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 3-5 |
| M5.1 | Stainless steels 450-800N/mm2 | 4-7 |
| M5.2 | Stainless steels 600-1000N/mm2 | 3-5 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| G 1/8" | 28 | 90 | 20 | 7 | 5,5 | 8,8 | |
| G 1/4" | 19 | 100 | 21 | 11 | 9 | 11,8 | |
| G 3/8" | 19 | 100 | 21 | 12 | 9 | 15,25 | |
| G 1/2" | 14 | 125 | 24 | 16 | 12 | 19 | |
| G 5/8" | 14 | 125 | 24 | 18 | 14,5 | 21 | |
| G 3/4" | 14 | 140 | 26 | 20 | 16 | 24,5 | |
| G 7/8" | 14 | 150 | 28 | 22 | 18 | 28,25 | |
| G 1" | 11 | 160 | 30 | 25 | 20 | 30,75 | |
| G 1 1/8" | 11 | 170 | 30 | 28 | 22 | 35,5 | |
| G 1 1/4" | 11 | 170 | 30 | 32 | 24 | 39,5 | |
| G 1 1/2" | 11 | 190 | 32 | 36 | 29 | 45,25 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | OX |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Case hardened and nitriding steels <1200N/mm2 |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 5156 |
| Thread type: | Pipe Thread |
| Tolerance: | - |
