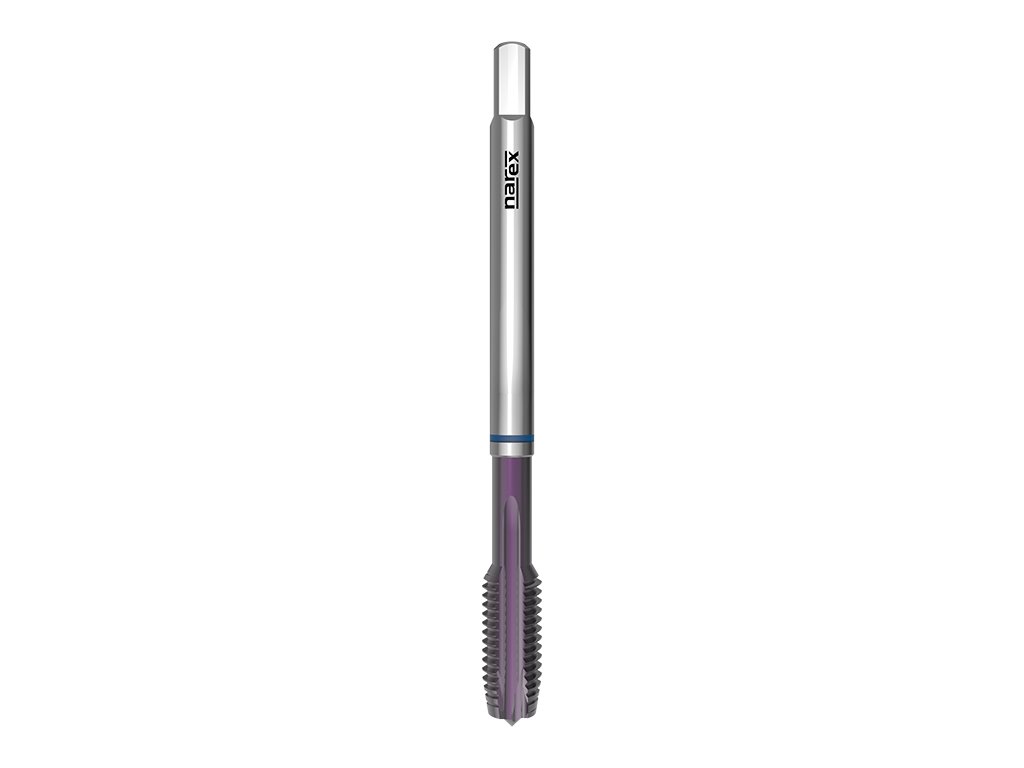

3870 - Machine tap with straight flutes and spiral point
Code: 041536284120000
Variant: M 6x0,75 6H
Currently unavailable
| 041536484068000
EAN: 8595111976051
€57,33
€47,38
excl. VAT
Variant: M 8x0,75 6H
In stock
(2 pcs)
| 041536484088000
EAN: 8595111973111
€63,75
€52,69
excl. VAT
Variant: M 8x1 6H
In stock
(>10 pcs)
| 041536484087000
EAN: 8595111973289
€57,78
€47,75
excl. VAT
Variant: M 10x1 6H
In stock
(>10 pcs)
| 041536484107000
EAN: 8595111973128
€60,32
€49,85
excl. VAT
Variant: M 12x1 6H
In stock
(>10 pcs)
| 041536484127000
EAN: 8595111973135
€69,91
€57,78
excl. VAT
Variant: M 12x1,5 6H
Currently unavailable
| 041536484125000
EAN: 8595111973159
€65,93
€54,49
excl. VAT
Variant: M 12x1,75 6H
In stock
(>10 pcs)
| 041536284120000
EAN: 8595111943671
€56,80
€46,94
excl. VAT
Variant: M 14x1,5 6H
In stock
(>10 pcs)
| 041536484145000
EAN: 8595111973173
€88,02
€72,74
excl. VAT
Variant: M 14x2 6H
In stock
(>10 pcs)
| 041536284140000
EAN: 8595111965673
€71,55
€59,13
excl. VAT
Variant: M 16x1,5 6H
In stock
(>10 pcs)
| 041536484165000
EAN: 8595111973708
€99,78
€82,46
excl. VAT
Variant: M 16x2 6H
In stock
(>10 pcs)
| 041536284160000
EAN: 8595111943688
€74,78
€61,80
excl. VAT
Variant: M 18x1,5 6H
In stock
(5 pcs)
| 041536484185000
EAN: 8595111973180
€123,87
€102,37
excl. VAT
Variant: M 18x2,5 6H
In stock
(>10 pcs)
| 041536284180000
EAN: 8595111965680
€112,19
€92,72
excl. VAT
Variant: M 20x1,5 6H
In stock
(4 pcs)
| 041536484205000
EAN: 8595111973296
€138,84
€114,74
excl. VAT
Variant: M 20x2,5 6H
In stock
(>10 pcs)
| 041536284200000
EAN: 8595111965765
€115,77
€95,68
excl. VAT
Product detailed description
Catalogue number: 3870
Machine tap with straight flutes and spiral point, metric and metric fine, DIN 376, DIN 374, Balinit Hardlube coated, suitable for case hardened and nitriding steels, stainless steels with stength up to 1000 N/mm2, unalloyed copper and long chipping coppe
Features:
Thread M: ISO Metric coarse thread
Thread MF: ISO Metric fine thread
Profile sketch: 60°
Thread standard: DIN 13
Type VA: Tap for stainless steels
Tap material: Powder high speed steel
Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)
Tap standard: DIN 376
Tap standard: DIN 374
Thread tolerance: ISO 2 - 6H
Chamfer B: Length 3,5-6 pitch
Hole type: Through hole (thread length L > 1,5xd1)
Machined materials:
| Group | Machined material | Cutting speed |
|---|---|---|
| P3.1 | Case hardened and nitriding steels <1200N/mm2 | 6-8 |
| P3.3 | Tool steels <1200N/mm2 | 4-6 |
| M5.1 | Stainless steels 450-800N/mm2 | 8-14 |
| M5.2 | Stainless steels 600-1000N/mm2 | 6-10 |
| N9.1 | Pure copper | 10-15 |
| N10.2 | Long chipping copper alloys | 12-20 |
Dimensions:
| d1 | P | tol | l1 | l2 | d2 | a | hole |
|---|---|---|---|---|---|---|---|
| M 6 | 0,75 | 6H | 80 | 15 | 4,5 | 3,4 | 5,2 |
| M 8 | 1 | 6H | 90 | 18 | 6 | 4,9 | 7 |
| M 8 | 0,75 | 6H | 80 | 15 | 6 | 4,9 | 7,2 |
| M 10 | 1 | 6H | 90 | 20 | 7 | 5,5 | 9 |
| M 12 | 1,5 | 6H | 100 | 21 | 9 | 7 | 10,5 |
| M 12 | 1,75 | 6H | 110 | 23 | 9 | 7 | 10,2 |
| M 12 | 1 | 6H | 100 | 21 | 9 | 7 | 11 |
| M 14 | 2 | 6H | 110 | 25 | 11 | 9 | 12 |
| M 14 | 1,5 | 6H | 100 | 21 | 11 | 9 | 12,5 |
| M 16 | 2 | 6H | 110 | 25 | 12 | 9 | 14 |
| M 16 | 1,5 | 6H | 100 | 21 | 12 | 9 | 14,5 |
| M 18 | 2,5 | 6H | 125 | 30 | 14 | 11 | 15,5 |
| M 18 | 1,5 | 6H | 110 | 24 | 14 | 11 | 16,5 |
| M 20 | 2,5 | 6H | 140 | 30 | 16 | 12 | 17,5 |
| M 20 | 1,5 | 6H | 125 | 24 | 16 | 12 | 18,5 |
Additional parameters
| Category: | Machine taps |
|---|---|
| Coating: | HL |
| Hole type: | through hole (thread length L > 1,5xd1), through hole (thread length L < 1,5xd1) |
| Machined material: | Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper |
| Product line: | NAREX Zdanice Product Line |
| Standard: | DIN 374, DIN 376 |
| Thread type: | Metric ISO Thread, Metric ISO Fine Thread |
| Tolerance: | 6H |
