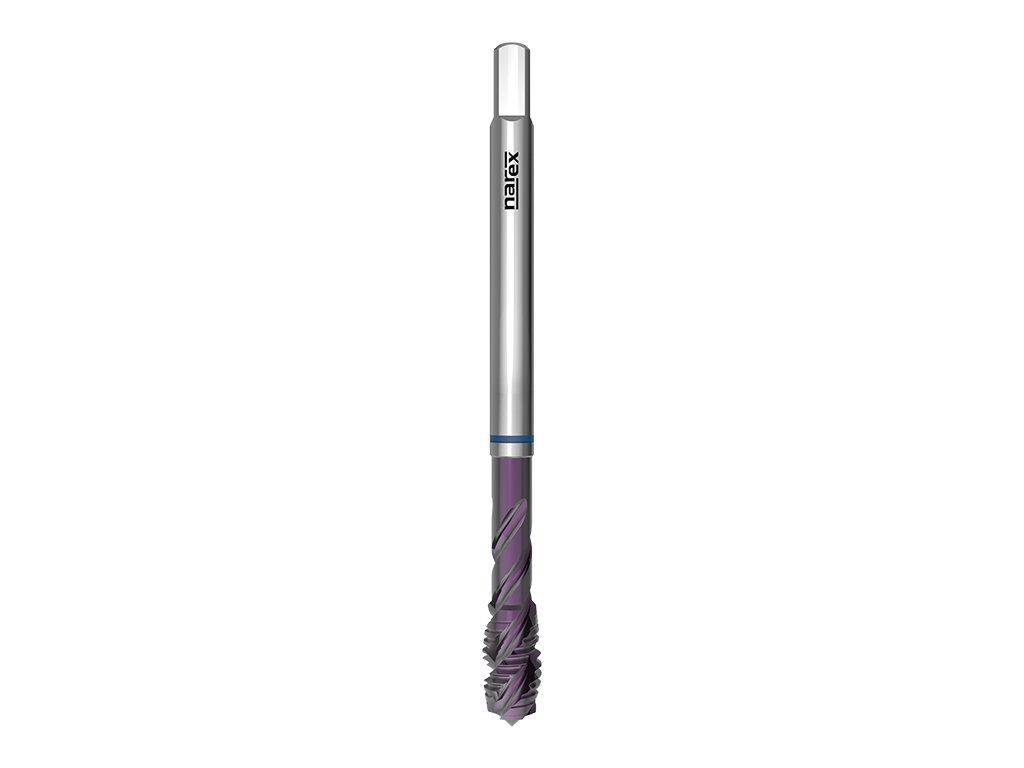

4320 - Machine tap with right-hand spiral flutes 40°

Code: 041536582068000
from €60,17 from €49,73 excl. VAT

Choose variant

Catalogue number: 4320

Machine tap with spiral flutes, metric and metric fine, DIN 376, DIN 374, Balinit Hardlube coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, tools steels, spheroidal and malleable cast iron, unalloye



Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

Tap standard: DIN 376Tap standard:   DIN 376

Tap standard: DIN 374Tap standard:   DIN 374

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


Detailed information

Variant: M 6x0,75 6H
Currently unavailable | 041536582068000 EAN: 8595111976310
€60,17
€49,73 excl. VAT
Variant: M 8x1 6H
In stock (>10 pcs) | 041536582087000 EAN: 8595111973340
€60,17
€49,73 excl. VAT
Variant: M 10x1 6H
In stock (>10 pcs) | 041536582107000 EAN: 8595111976242
€64,66
€53,44 excl. VAT
Variant: M 12x1 6H
In stock (10 pcs) | 041536582127000 EAN: 8595111981130
€76,48
€63,21 excl. VAT
Variant: M 12x1,5 6H
In stock (>10 pcs) | 041536582125000 EAN: 8595111977966
€72,08
€59,57 excl. VAT
Variant: M 12x1,75 6H
In stock (>10 pcs) | 041536382120000 EAN: 8595111943800
€64,88
€53,62 excl. VAT
Variant: M 14x1,5 6H
In stock (2 pcs) | 041536582145000 EAN: 8595111973258
€94,99
€78,50 excl. VAT
Variant: M 14x2 6H
In stock (>10 pcs) | 041536382140000 EAN: 8595111970356
€80,47
€66,50 excl. VAT
Variant: M 16x1,5 6H
In stock (>10 pcs) | 041536582165000 EAN: 8595111977904
€115,18
€95,19 excl. VAT
Variant: M 16x2 6H
In stock (>10 pcs) | 041536382160000 EAN: 8595111970677
€88,39
€73,05 excl. VAT
Variant: M 18x1,5 6H
In stock (>10 pcs) | 041536582185000 EAN: 8595111980669
€130,38
€107,75 excl. VAT
Variant: M 18x2,5 6H
In stock (>10 pcs) | 041536382180000 EAN: 8595111970899
€127,98
€105,77 excl. VAT
Variant: M 20x1,5 6H
In stock (>10 pcs) | 041536582205000 EAN: 8595111974293
€148,19
€122,47 excl. VAT
Variant: M 20x2,5 6H
In stock (>10 pcs) | 041536382200000 EAN: 8595111970684
€132,31
€109,35 excl. VAT

Product detailed description

Catalogue number: 4320

Machine tap with spiral flutes, metric and metric fine, DIN 376, DIN 374, Balinit Hardlube coated, suitable for case hardened and nitriding steels, stainless steels with strength up to 1000 N/mm2, tools steels, spheroidal and malleable cast iron, unalloye



Features:

Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

Thread MF: ISO Metric fine threadThread MF:   ISO Metric fine thread

Profile sketch: 60°Profile sketch:   60°

Thread standard: DIN 13Thread standard:   DIN 13

Type VA: Tap for stainless steelsType VA:   Tap for stainless steels

Tap material: Powder high speed steelTap material:   Powder high speed steel

Coating: Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)Coating:   Balinit® Hardlube coating (titanium aluminiumnitride + WC/C)

Tap standard: DIN 376Tap standard:   DIN 376

Tap standard: DIN 374Tap standard:   DIN 374

Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

Spiral flute angle: 40°Spiral flute angle:   40°

Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




Machined materials:

GroupMachined materialCutting speed
P3.1Case hardened and nitriding steels <1200N/mm26-8
P3.2Heat-treated steels <1200N/mm24-6
P3.3Tool steels <1200N/mm26-8
M5.1Stainless steels 450-800N/mm28-14
M5.2Stainless steels 600-1000N/mm26-10
N9.1Pure copper10-15
N10.2Long chipping copper alloys12-20



Dimensions:

4320: kreslenka
d1Ptoll1l2d2ahole
M 60,756H80104,53,45,2
M 816H901364,97
M 80,756H801064,97,2
M 1016H901275,59
M 121,56H100149710,5
M 121,756H110189710,2
M 1216H100149711
M 1426H1102011912
M 141,56H1001611912,5
M 1626H1102012914
M 161,56H1001612914,5
M 182,56H12525141115,5
M 181,56H11020141116,5
M 202,56H14025161217,5
M 201,56H12520161218,5

Additional parameters

Category: Machine taps
Coating: HL
Hole type: blind hole (thread length L < 2xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1)
Machined material: Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2, Pure copper
Product line: NAREX Zdanice Product Line
Standard: DIN 374, DIN 376
Thread type: Metric ISO Thread, Metric ISO Fine Thread
Tolerance: 6H
