    Home / Threading tool sets / 9950 - Threading tool sets

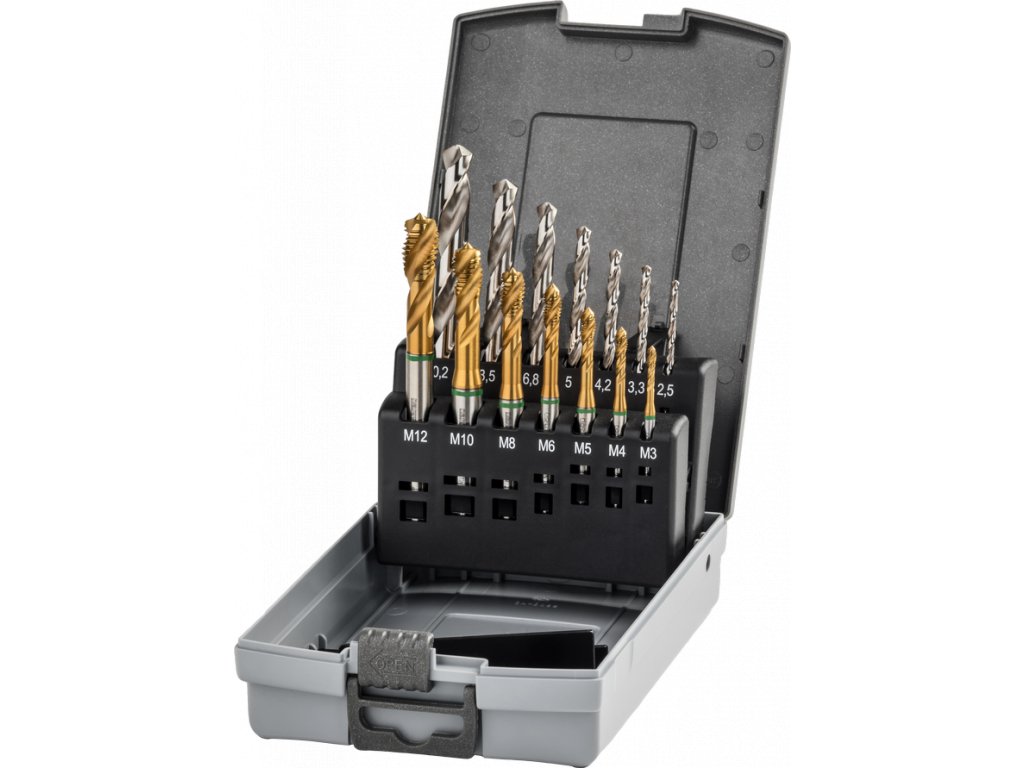

    9950 - Threading tool sets

    Code: 041139445505000
    9950 - Threading tool sets
    €252,45 €208,64 excl. VAT

    Choose variant

    Catalogue number: 9950

    C-UNI-RSP Set of taps cat. No. 2210 M3, M4, M5, M6, M8, M10 and cat. No. 4210 M12 + core drills DIN 338 2,5, 3,3, 4,2, 5,0, 6,8, 8,5, 10,2



    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)


    Detailed information

    Variant: x
    In stock (10 pcs) | 041139445505000
    €252,45
    €208,64 excl. VAT

    Product detailed description

    Catalogue number: 9950

    C-UNI-RSP Set of taps cat. No. 2210 M3, M4, M5, M6, M8, M10 and cat. No. 4210 M12 + core drills DIN 338 2,5, 3,3, 4,2, 5,0, 6,8, 8,5, 10,2



    Features:

    Thread M: ISO Metric coarse threadThread M:   ISO Metric coarse thread

    Profile sketch: 60°Profile sketch:   60°

    Thread standard: DIN 13Thread standard:   DIN 13

    Type UNI: Tap for universal applicationsType UNI:   Tap for universal applications

    Tap material: Vanadium extra high speed steel HSSE V3Tap material:   Vanadium extra high speed steel HSSE V3

    Thread tolerance: ISO 2 - 6HThread tolerance:   ISO 2 - 6H

    Chamfer C: Length 2-3 pitchChamfer C:   Length 2-3 pitch

    Spiral flute angle: 40°Spiral flute angle:   40°

    Hole type: Blind hole (thread length < 2 d1)Hole type:   Blind hole (thread length < 2 d1)




    Machined materials:

    GroupMachined materialCutting speed
    P2.1Free-cutting steels <800N/mm28-10
    P2.2Structural steels <800N/mm28-10
    P3.1Case hardened and nitriding steels <1200N/mm24-6
    P3.2Heat-treated steels <1200N/mm24-6
    P3.3Tool steels <1200N/mm24-6
    M5.1Stainless steels 450-800N/mm26-10
    M5.2Stainless steels 600-1000N/mm24-7
    K6.1Grey cast iron8-12
    K6.2Spher. graphite and mall. cast iron7-10
    N8.1Aluminium alloysSi<10%12-20
    N8.2Aluminium alloysSi<10%12-20
    N10.2Long chipping copper alloys12-20

    Additional parameters

    Category: Threading tool sets
    Coating: -
    Hole type: blind hole (thread length L < 2xd1), through hole (thread length L < 1,5xd1), blind hole (thread length < 1,5 d1, pilot drilling depth ≥ L+d1), blind hole (thread length L < 1,5xd1), blind hole (thread length L < 2,5xd1)
    Machined material: Free-cutting steels <800N/mm2, Structural steels <800N/mm2, Grey cast iron, Spher. graphite and mall. cast iron, Aluminium alloysSi<10%, Stainless steels 450-800N/mm2, Stainless steels 600-1000N/mm2, Long chipping copper alloys, Case hardened and nitriding steels <1200N/mm2, Heat-treated steels <1200N/mm2, Tool steels <1200N/mm2
    Product line: NAREX Zdanice Product Line
    Standard: * *
    Thread type: Metric ISO Thread
    Tolerance: *
